In a world full of smart outdoor lighting, Photocontrols are the core enablers, turning lights on at dusk and off at dawn. But not all photocontrols work the same.
If you’re choosing between thermal-type and electronic-type photocontrols, awareness of the differences in performance, accuracy, and use case is essential, Let’s break it down.
Let’s break it down.
How They Work
| Тип | Принцип работы |
| Thermal | Uses a cadmium sulfide photocell to heat a bimetal strip, which bends to open/close the circuit (thermal delay built-in) |
| Electronic | Uses a phototransistor + amplifier + relay circuit to instantly control light switching |
Both designs achieve the same goal, automating lighting control, but the way they sense and switch differs significantly. The thermal design relies on physical expansion, while the electronic control leverages sensors and circuitry for faster, smarter performance.
Thermal-type photocontrols typically have a noticeable delay due to their heating mechanism. While this delay can prevent false triggering, it also limits responsiveness. On the other hand, electronic photocontrols utilize cutting-edge circuitry that responds almost instantly to ambient light changes.
This difference becomes especially important in critical environments like airports, tunnels, or smart cities where timing and precision matter.
Additionally, electronic units often include diagnostic feedback features and status LEDs, which are becoming standard in smart lighting ecosystems. These extra features allow operators to monitor the health and status of each lighting node, something thermal units simply can’t provide.
Performance Comparison
| Особенность | Thermal Type | Electronic Type |
| Response Time | Slow (30–90 sec delay) | Fast (2–10 sec or instant) |
| Control Accuracy | Medium (temperature sensitive) | High (precise light threshold) |
| Потребляемая мощность | ∼1W | ≤0.5W (energy-saving) |
| Switch Lifespan | ∼5,000–8,000 cycles | >10,000 cycles |
| Temp Stability | Affected by heat/cold | Stable in extreme environments |
| EMC Sensitivity | Low (basic design) | Requires robust shielding (Lead-Top uses IR-filtered design) |
| Cost | Lower | Slightly higher |
Electronic photocontrols excel in response time and precision, making them great for smart lighting systems, Meanwhile, thermal units still play a vital role where simplicity and cost-efficiency are more important than advanced features.
Moreover, thermal units can sometimes offer better surge resilience due to their mechanical simplicity, making them ideal for unstable grid environments. However, electronic units now often include built-in surge protection up to 20kV, bridging this gap.
Recommended Use Cases
| Сценарий применения | Best Fit Type | Причина |
| Basic municipal street lighting | Thermal or Electronic | Thermal is cost-effective |
| Smart cities / LED upgrades | Electronic | Faster, more precise, platform-ready |
| Extreme climates (desert or snow) | Electronic | Better temp compensation |
| Billboard, warehouse, parking lot | Both applicable | Based on budget and precision needs |
| IoT integration (DALI/0-10V) | Electronic | Required for protocol support |
Electronic models are also great when integrating with IoT streetlights and DALI-диммирование systems, where seamless switching is necessary.
If you’re working on energy-efficient projects like remote monitoring or ШИМ dimming, the electronic option is unmatched.
In cost-sensitive projects that involve rural highways or low-density areas, thermal photocontrols are often sufficient. But in high-traffic, data-driven regions, electronic controls should be standard.
Product Selection Guide
| Customer Need | Рекомендация Lead-Top |
| Cost-sensitive, basic switching | Thermal Type – LT110 Series |
| Fast response, long lifespan, EMC | Electronic Type – LT124 или LT134 Series |
| High-voltage application (347V/480V) | High-Voltage Electronic – LT154E |
| Certification-ready for public bids | UL/CE Certified Electronic Models |
At Lead-Top, we offer both thermal and electronic photocontrols, letting you choose the right fit based on environment, compliance needs, and project complexity.
We also offer enhanced surge protection, tamper-proof housing, and weatherproof enclosures across both thermal and electronic ranges, providing field-tested resilience.

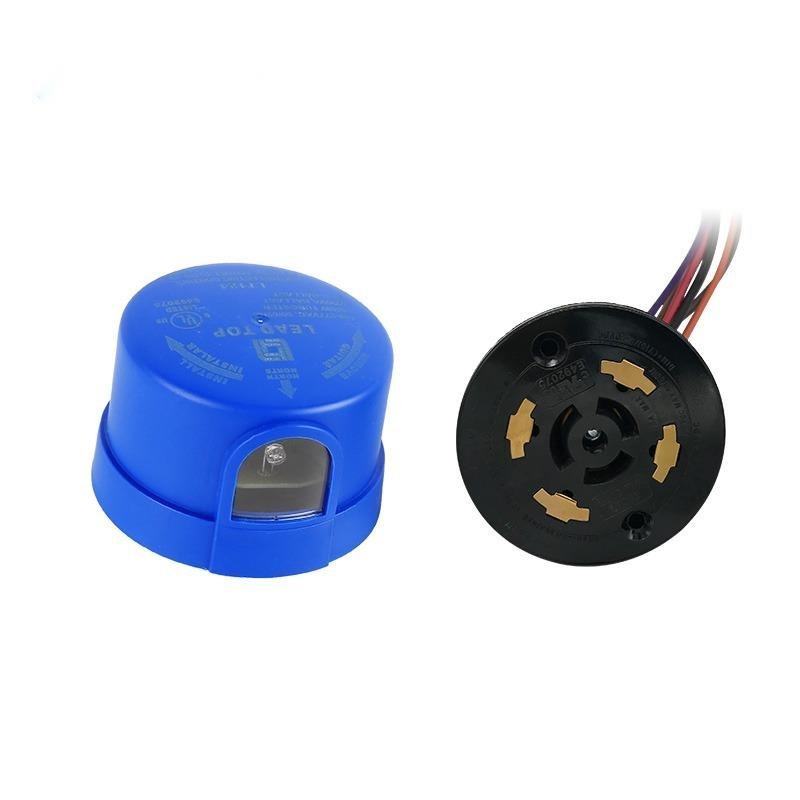

Lead-Top Product Line Comparison
| Модель | Тип | Основные характеристики |
| ЛТ110 | Thermal | 30–180 sec delay, cost-effective, reliable for general use |
| LT124 | Electronic | 3–6 sec delay, zero-crossing detection, low power, IP66 |
| LT134 | Electronic | 6-year life, 6KV surge protection, ideal for LED upgrades |
| LT154E | Electronic | 277–528V input, IP67 sealed, high voltage, Fail OFF default |
These models cover a wide range of applications, from basic dusk-to-dawn lighting to fully integrated smart lighting platforms.
Final Decision Matrix
| Criteria | Thermal Photocontrol | Electronic Photocontrol |
| Response Speed | Slow (less sensitive) | Fast (precise switching) |
| Control Accuracy | Середина | Высокий |
| Cost | Lower | Moderate |
| Technology Level | Simple, mechanical | Smart, programmable |
| Ideal Use | Legacy lighting systems | Smart cities & high-end projects |
If your municipality is dealing in legacy installations or large-scale retrofits, thermal options may still be practical. But for fluctuating energy environments, electronic units provide much better optimization and control.
In high-stakes environments where every second of lighting counts, electronic controllers prove more reliable.
In areas with stringent safety standards and inspection protocols, electronic models with real-time diagnostics are often mandatory. Lead-Top’s controllers also meet IEC standards, ensuring peace of mind in international applications.
Почему стоит выбрать Lead-Top?
With over 15 years of experience and customers in 50+ countries, Lead-Top remains a global leader in photocell innovation:
- Full certification: UL, CE, CB, RoHS, and EMC compliance
- Rugged design with durable IP-rated enclosures
- Fast delivery: 2–3 days for samples, 7–15 days for bulk
- Customization for voltage, switch logic, color, labeling, and branding
- Technical support for smart integration (DALI, Zigbee, etc.)
Our products are engineered to decrease failure rates, optimize field performance, and make sure of reliable operation in demanding environments.
Whether you’re a streetlight OEM, municipal contractor, or smart city planner, we offer:
- Thermal and electronic models tailored to project specs
- Zero MOQ for customization
- Engineering support for control integration
- Multilingual documentation for fast international deployment
- A broad portfolio with over 100 SKUs for specific lighting environments
- Partner integration support for CMS platforms and data aggregation systems
We also assist our partners by offering:
- Online and on-site technical training
- Co-branded datasheets for private label opportunities
- Firmware matching for platform-level control systems
- Joint development for specialized regional lighting needs
- Remote firmware upgrades and diagnostics via smart controller packages
Our partners often return with second- and third-phase orders, demonstrating satisfaction in both product longevity and after-sales support. We offer not just products but a complete system of partnership.
Final Takeaway
Choosing the right photocontrol isn’t just about specs, it’s about matching technology to purpose.
If you’re building a smarter, more efficient city or upgrading traditional lighting systems, the type of controller you use makes all the difference.
With Lead-Top’s dual offering of thermal and electronic photocontrols, plus extensive customization, compliance documentation, and fast delivery, we make that choice easier.
Whether it’s a budget-conscious thermal unit or a high-precision electronic controller, Lead-Top delivers control with confidence.
