How Lead-Top Fotocellen and Contactors Create Smarter, Safer Outdoor Lighting Systems
In the evolving world of smart cities and energy-efficient infrastructure, reliable outdoor lighting control is no longer an option; it has become an essential component or smart cities.Urban infrastructure demands smarter solutions, systems that are intelligent and reliable. At the core of this shift lies the fotocel, paired with a contactor, as the backbone of a modern lighting control network.
Zhejiang Lead-Top Electrical Co., Ltd. leads this transformation, offering globally certified, high-performance photocell switches and contactor-compatible controllers, With advanced manufacturing capabilities in Zhejiang, China, Lead-Top’s products are engineered for precision, durability, and integration into smart lighting systems worldwide.
How a Photocell Works with a Contactor: A Smarter Switching System
In traditional setups, fotocellen controlled lighting directly by interrupting the power circuit based on ambient light. But as loads increased and smart systems became more complex, the need for indirect control using contactors became evident for better safety and consistent performance.
Here’s how Lead-Top’s light sensor switches work in sync with contactors:
- Sensing Light Levels
De fotocelsensor detects changes in natural light via a CdS cell or infrared phototransistor. When light falls below 10–16 Lux, it sends a low-current signal. - Contactor Activation
This signal energizes the coil of the contactor, a high-power relay, which safely switches on large lighting loads like multiple streetlights, parking zones, or industrial units. - Load Switching
The contactor then closes the circuit and gives way to the full voltage, i.e., 220V/277V/480V for the connected lights. - Daylight Reset
When the ambient light is enough once again, foto-elektrische sensor detects it as it reaches the set threshold. It opens the circuit and deactivates the contactor. Hence, the lights are switched off. This mechanism ensures that the individual photocell units take the minimum possible wear. Moreover, a large lighting infrastructure can also perform with maximum safety.
Lead-Top Model Highlights: Engineered for Reliability and Performance
Lead-Top provides a diverse range of wire-in and twist-lock photocells, engineered to work with various types of contactors and support flexible lighting control applications
| Model | Type | Spanning | Max Load | Belangrijkste kenmerken |
| LT210 Series | Thermal Wire-in | 120–277V | 2000W | Fail Mode ON, cost-effective, basic light sensor |
| LT310 Series | Electronic Wire-in | 120–277V | 1800W | Fast IR filter sensor, stable switching |

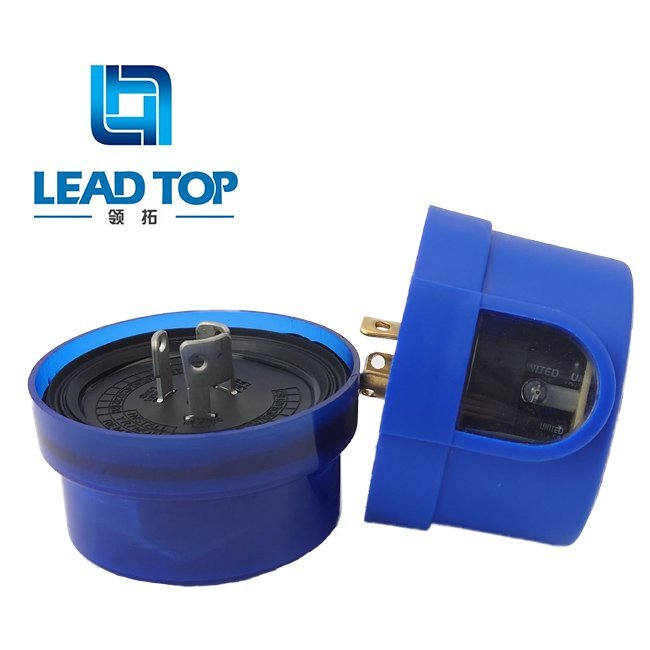

| LT124 / LT134 / LT154 | Twist-Lock Photocell | 120–277V | 1000W–1800VA | Surge protection up to 20kV, zero-crossing switch |
| LT154E | High-Voltage Twist-Lock | 347–480V | 1000W | Industrial-grade, IP66 housing, 10-year warranty |
All models meet or exceed UL773, ANSI C136.10, CE, and CB standards, and are widely used in:
- Smart streetlight networks
- Verlichting van de parkeerplaats
- Industrial lighting control
- Commercial signage or billboard lights
Whether your project calls for a photo switch sensor or a fotocel for street light, Lead-Top’s models ensure compatibility, endurance, and smooth performance along with longevity and low maintenance cost.
Why Choose Lead-Top: Factory Strength That Powers Your Projects
Lead-Top isn’t a reseller, it’s a factory-direct manufacturer with over 20 years of experience. Our in-house capabilities ensure fast production, complete customization, and consistent quality.
Here’s what makes us different:
- Zero MOQ Customization
Logo printing, shell color, voltage tuning—tailored to your branding and specs. - Lightning-Fast Delivery
Standard production lead time is just 7 working days for 500–1000 pcs.
- Extreme Durability
All photocells feature IP66/IP67 enclosures, flame-retardant housings, and >10,000 ON/OFF cycles, ensuring the highest possible durability. - Certifications That Win Projects
We offer models certified under UL, CE, CB, IK, and Zhaga Book 18, making us an ideal and the most trustworthy partner for international bids. - 5M+ Units Shipped Annually
Over 5 million units shipped annually to USA, Brazil, Mexico, India, UAE, and more.
Whether you need a light photocell for a highway project or an automatic light sensor for public infrastructure, Lead-Top has the stock and capability to support any scale and specific needs with its certified, state-of-the-art technology adapted to customer’s needs.
Application Example: Wiring a Photocell to a Contactor
To illustrate just how simple and powerful this configuration can be, here’s a basic wiring setup:
text
CopyEdit
Photocell Output (N.O.) → Contactor Coil (A1, A2)
Contactor Power Input (L1, L2, L3) → Lighting Load
Photocell Power Input → 120V/220V/277V
In this configuration:
- One photocell light switch controls multiple lighting loads.
- The contactor acts as the high-current switch, preserving the life of the photocell sensor.
- This reduces manual maintenance while ensuring centralized street lighting control across broad installations.
It’s ideal for energy-efficient lighting automation in parks, roads, industrial campuses, or even large smart city grids.
As lighting becomes a core element in IoT-based urban development, Lead-Top photocells are also being adapted for integration with smart street lighting controllers, remote monitoring systems, and photo control hubs to offer the cutting edge technology that delivers.
Upcoming models support:
- Wireless communication (NB-IoT/LoRa)
- Data reporting for light levels and fault alerts
- Compatibility with Zhaga Book 18 and NEMA 7-pin systems
This makes Lead-Top ideal not just for traditional dusk-to-dawn control, but also for future-ready smart infrastructure.
Global Use Case Examples
1. Public Park Lighting in Mexico City
A citywide lighting overhaul used the LT210 thermal photocell and contactor banks to reduce power usage during daylight hours. Result: 36% lower electricity bills in the first year.
2. Industrial Complex in Brazil
A logistics hub switched to LT154 twist-lock photocells paired with 480V contactors. The new system improved reliability and passed all CE/UL compliance inspections.
3. Smart Streetlight Pilot in Dubai
Using the LT310 series, Dubai’s municipal team integrated motion sensors and photocontrols to enable adaptive brightness. Maintenance calls dropped by over 50% in six months.
Ready to Power Your Smart Lighting Project?
Lead-Top’s photocells and contactors form the foundation of smarter, more energy-efficient outdoor lighting systems. Whether you’re bidding for a municipal street lighting contract, upgrading industrial lighting controls, or planning your next smart city node, we’ve got a solution for you.
Need a wiring diagram, quote, or datasheet? Connect with our sales team today and discover why top cities and integrators choose Lead-Top.
