Our NEMA sockets are primarily categorized into ANSI C136.10 & ANSI C136.41 standard configurations of 3P, 5P, and 7P sockets.
Showing 1–12 of 21 results
The Photocell Receptacle is a reliable interface designed for outdoor lighting fixtures, enabling easy connection between a photocontrol and the luminaire. Designed for NEMA-compatible lighting systems, it provides a secure and standardized connection for automatic dusk-to-dawn lighting control.
By integrating a compatible photocontrol, the receptacle allows outdoor lighting fixtures to automatically switch ON at low ambient light levels and OFF during daylight, helping reduce unnecessary energy consumption and simplify lighting management.
Available in 3-pin, 5-pin, and 7-pin configurations, the receptacle can support different levels of lighting control, from basic ON/OFF photocontrol to dimming and advanced smart lighting applications.
3 pin photocell has 3 prong outside; 5 pin photocell has 3 prong as well, but has two extra copper contact; 7 pin NEMA photocell sensor also have 3 long prong but has 4 copper dimming contacts.
| Type | Main Function | Typical Application |
|---|---|---|
| 3-Pin Receptacle | ON/OFF photocontrol | Basic outdoor lighting |
| 5-Pin Receptacle | ON/OFF + 0-10V / 1-10V dimming | Dimmable LED lighting |
| 7-Pin Receptacle | Dimming + additional control signals | Smart lighting / advanced control |
The twist-lock design provides a stable electrical and mechanical connection while allowing convenient installation, replacement, and maintenance.
Three Main Wires:
Black – Live White – Neutral Red – Load
Four Dimming Wires:
Brown Wire/Orange Wires–Dali Dimming Pink Wire/Violet Wire–0-10V Dimming
1. The daily on/off functionality of the ANSI C136.10 standard (NEMA 3P SOCKET)
2. Dimming socket ANSI C136.41 –Smart street light project (NEMA 5/7P Socket)
3. Wall-mounted ultra waterproof socket(NEMA 3/5/7P)
1. Tech Data：Customize with waterproof sealant, add a waterproof back cover, and include a power cable
Talk to an Expert

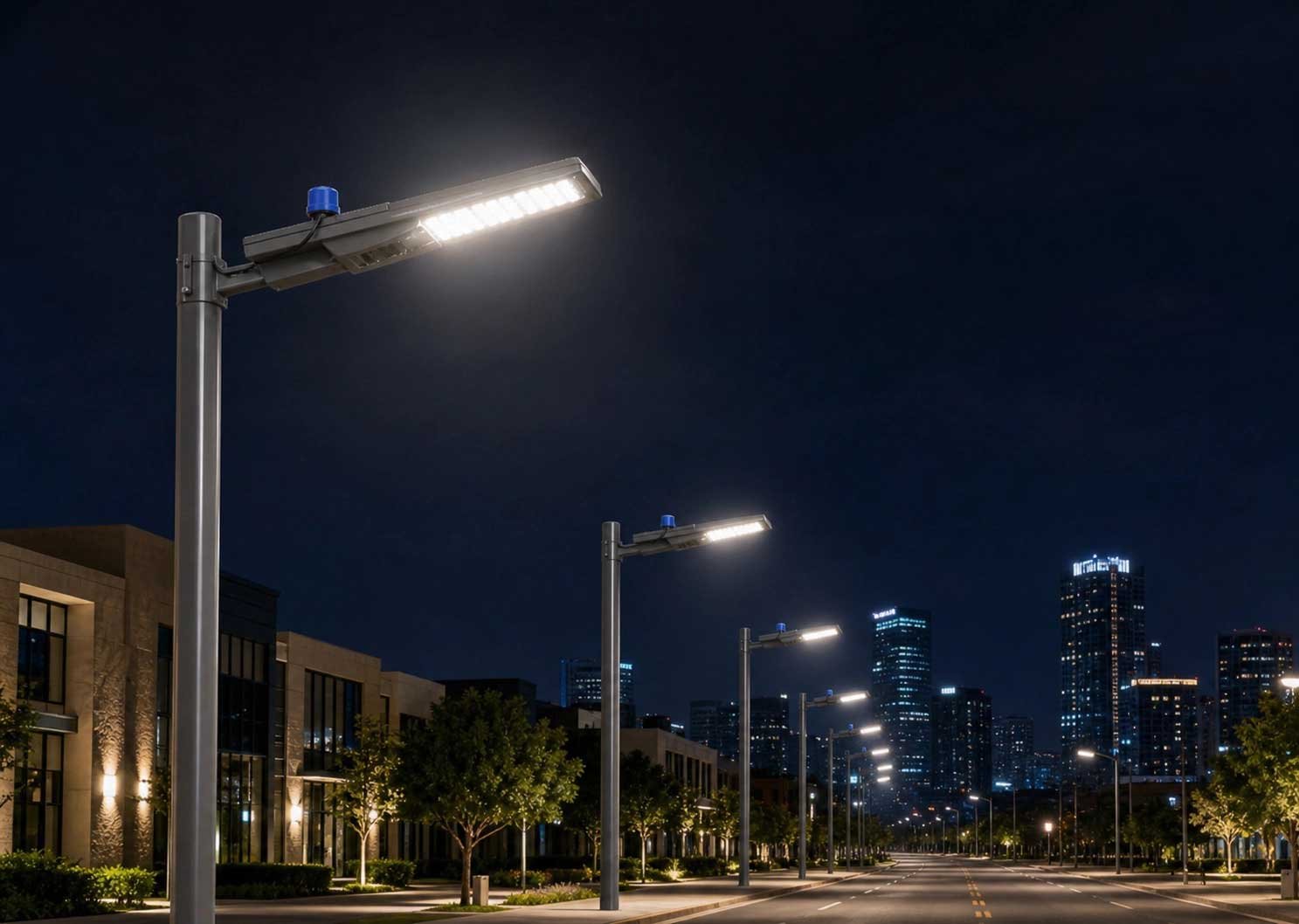

Suitable for a wide range of outdoor lighting systems, including: LED Street Lights Roadway Lighting Parking Lot Lighting Area Lighting Shoebox Fixtures Post Top Lights Outdoor Commercial Lighting Smart City Lighting Systems Built for Outdoor Environments
ANSI C136.10 & ANSI C136.41 & UL & CE & CB & IP66 & IK08 & BS5972 etcs
