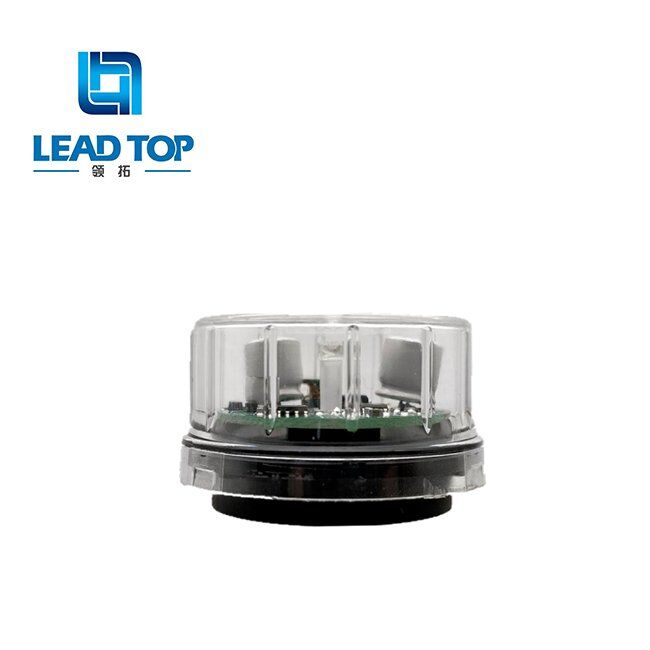

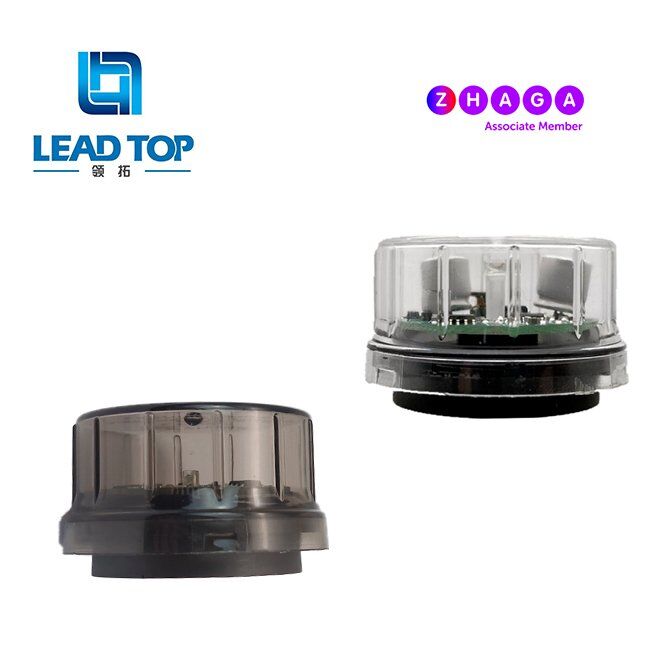

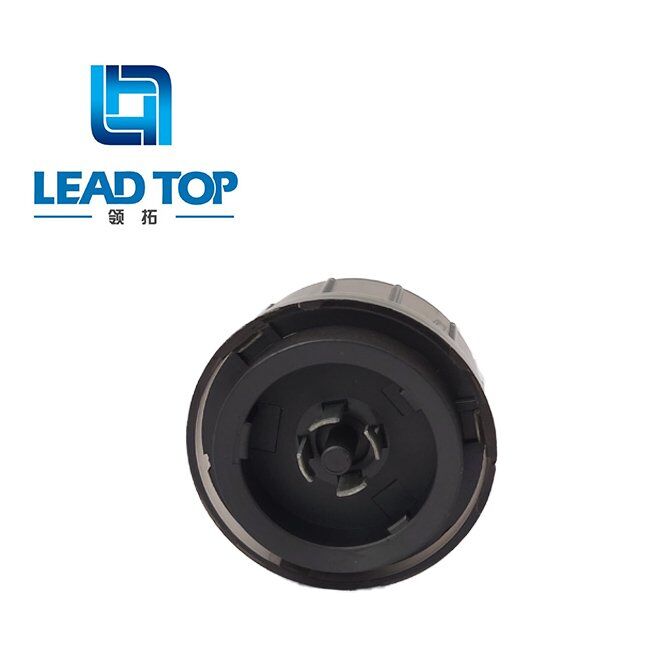

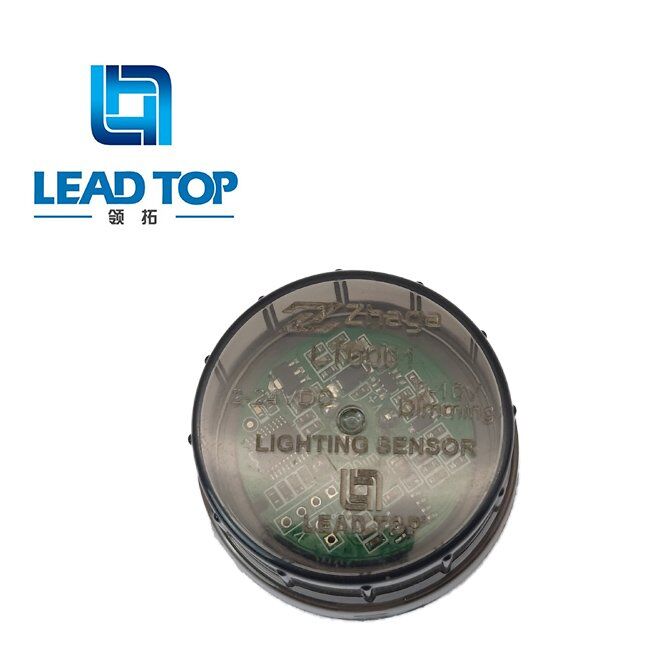

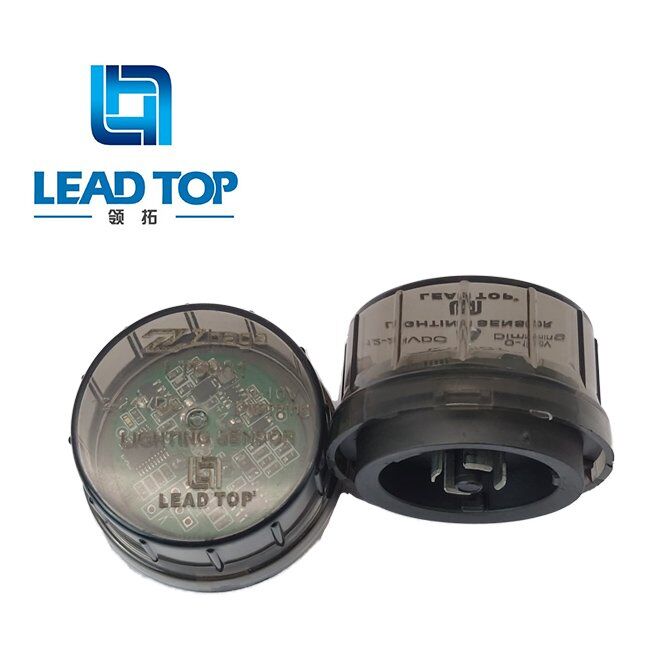

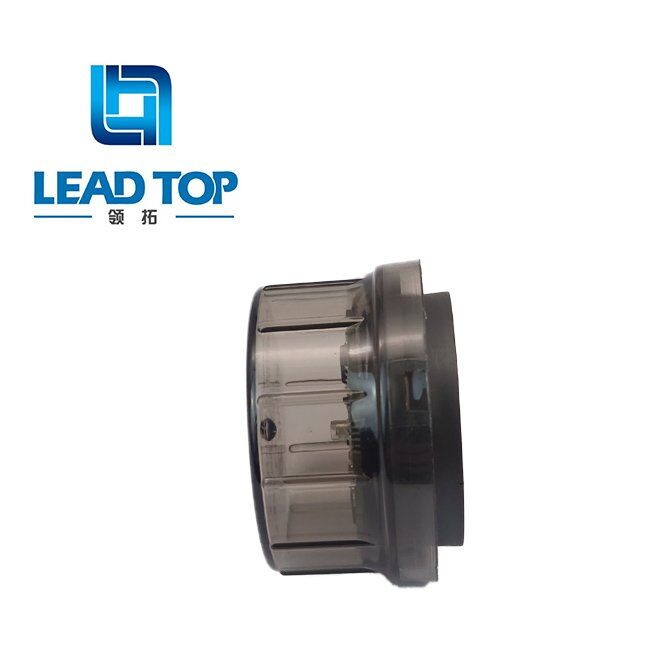

The standardized ZHAGA BOOK 18 interface of LEAD TOP’s ZHAGA lighting controller is applicable to 0-10V dimming driver to control the lighting fixtures automatically in accordance with the ambient natural lighting level, with microprocessor circuit and IR Filter Phototransistor.

Product information
Model:LT6001
Standard：Zhaga Book 18
Rated Volts: 12-24 VDC
Turn-On Light Levels: 10-16 Lux
ON/OFF Ratio: 1：1.5
Time Delay: 3-10 Seconds
Operating Temperature: -40℃ to +70℃
Switch: >10000 ON/OFF Operations
Ingress Protection: IP66
Light Sensor: ≤ 0.5 watts
Cover: Anti-UV Impact Resistance Polycarbonate
Base: High Temperature Resistance Polybutylene Terephthalate
Fail Mode : ON
