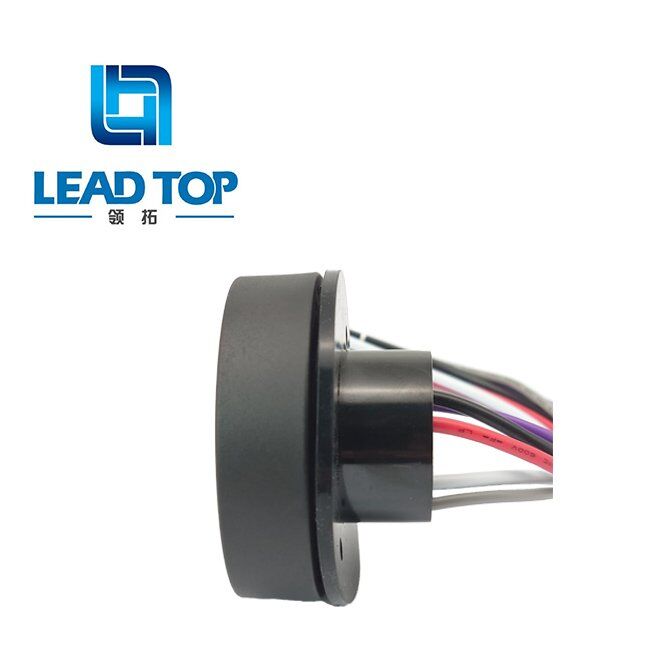

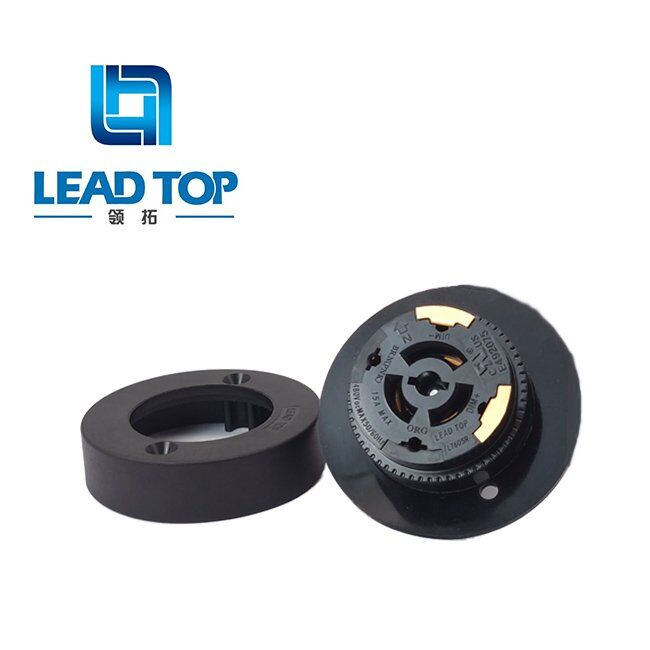

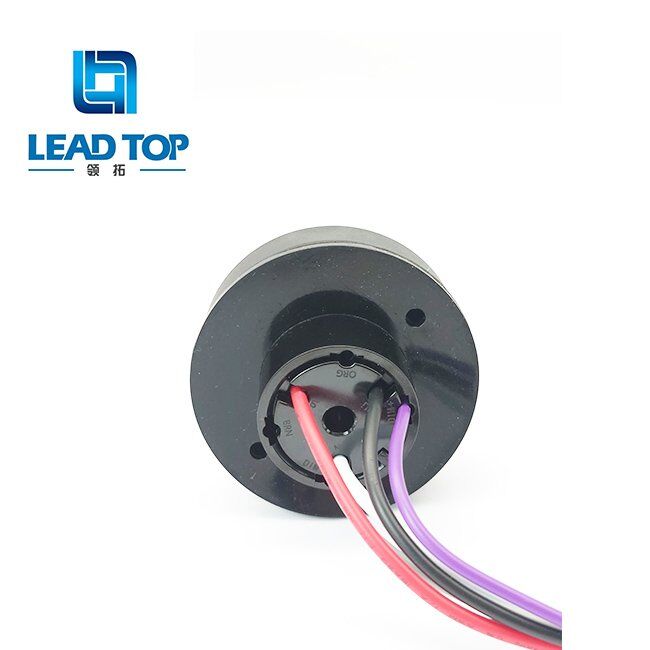

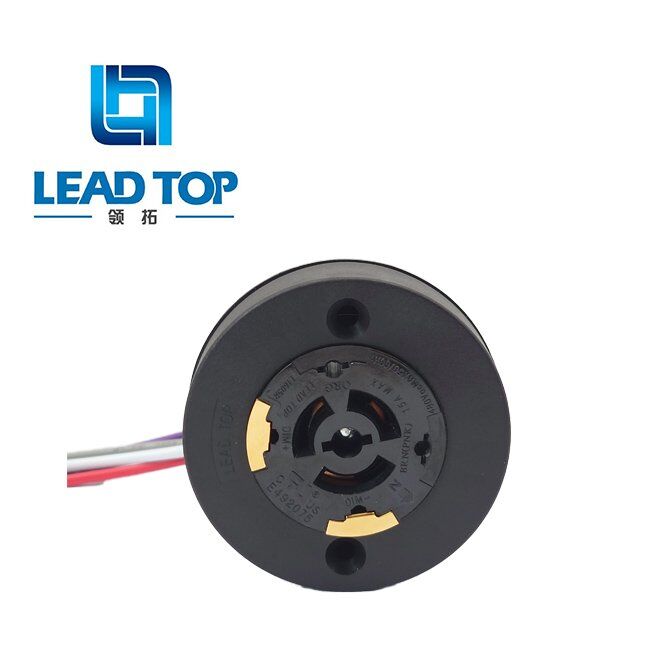

360 Degree Rotation Nema 5 Pin receptacle socket 360-Degree-Rotation-ANSIC136.41-Nema-5-Pin-Twist-Lock Photocell-Connector
Our street lighting photocells are ANSI C136.10 compliant, providing a cost-effective and dependable solution for automated lighting control from dusk to dawn. Engineered to optimize lighting system performance and save energy, these photocells utilize advanced electronic circuitry and a stable phototransistor light sensor for consistent on/off functionalit
Product information
Model:LT605R
Standard：ANSI C136.41 & UL773
Voltage Rating：Power Contscts : 480V
Dimming Contacts : 30V
Current Rating：Power Contscts : 15A
Dimming Contacts : 250mA
Releated Humidity：99%
Insulation：2500V/60Hz/1min
Housing：Bakelite
5 Position：3 power contacts , 2 dimming/signal contacts
Cable：Power Line : UL1015 14AWG*30cm
Signal Line : UL1015 18AWG*30cm
Accessory：Silicon Gasket
360 Degree Rotation Nema 5 Pin receptacle socket 360-Degree-Rotation-ANSIC136.41-Nema-5-Pin-Twist-Lock Photocell-Connector
Features:
Supports multiple input voltages
CE Certification
ANSI C136.24 & UL773A compliant
Applications:Our product is widely used in various settings,
Street lighting
Outdoor LED lighting
Highways lighting
Parking lot lighting
Public areas lighting
Railway stations lighting
Airports
Farms
Parks
Schools
