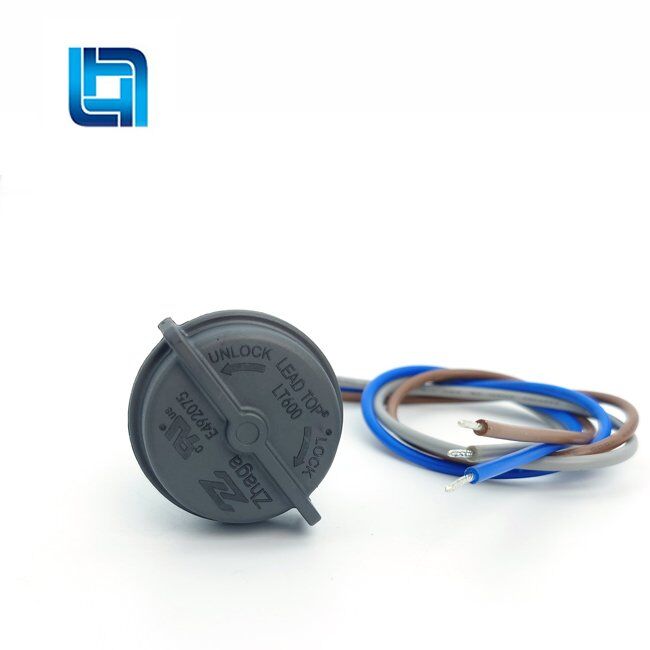

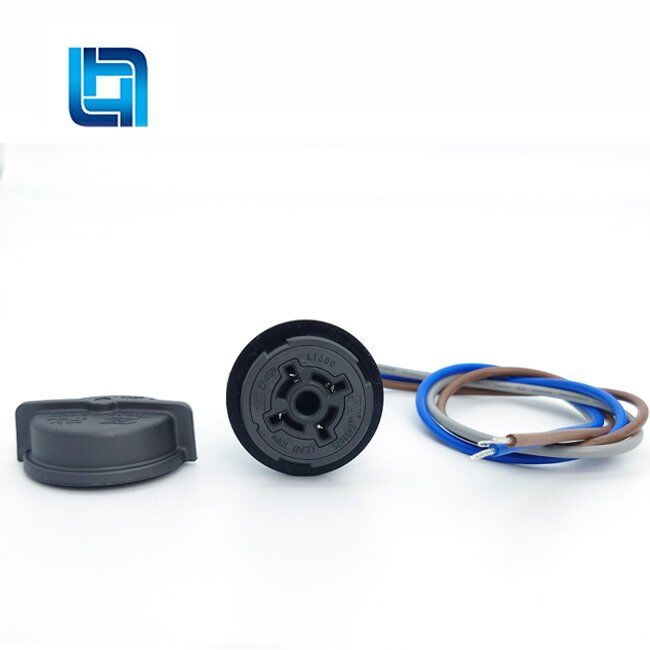

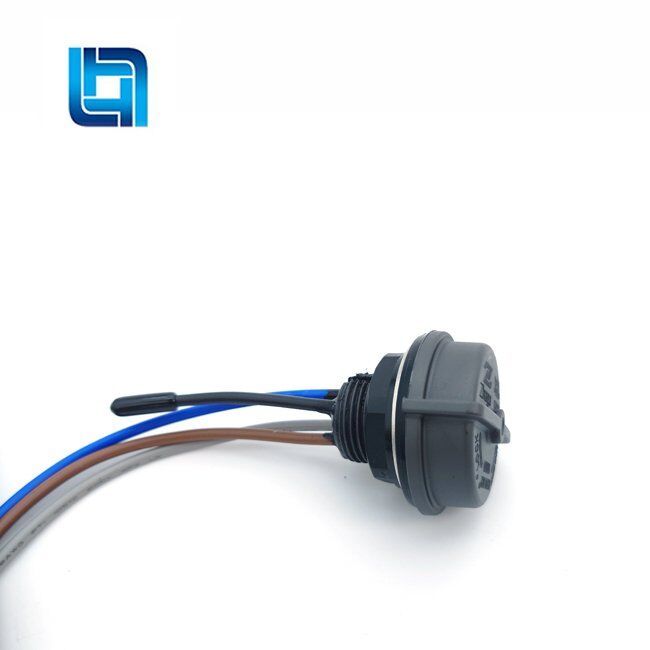

Latest Models 1.5A, 30V Zhaga Socket

Our street lighting photocells are ANSI C136.10 compliant, providing a cost-effective and dependable solution for automated lighting control from dusk to dawn. Engineered to optimize lighting system performance and save energy, these photocells utilize advanced electronic circuitry and a stable phototransistor light sensor for consistent on/off functionalit

Product information
Model:LT600
Standard:Zhaga Book 18
Rating:1.5A, 30V
Dielectric Withstand:10KV to mounting surface
4PIN Contact:Pin 1: 24VDC (Brown Wire)
Pin 2: DALI – (Grey Wire)
Pin 3: DALI+ (Violet Wire)
Pin4: General I/O (Blue Wire)
Ingress Protection:IP65
Housing Materials:High Temperature Resistance Polybutylene Terephthalate
Gasket:Silicon Materials
Mounting Ring:Aluminm Materials
Wire:UL1015 18AWG*16cm

Latest Models 1.5A, 30V Zhaga Socket

To ensure long-term reliability, we’ve made some key improvements:

  1. Enhanced Wire Stability – Dual crimping technology ensures a stronger wire connection, improving fixture stability and lifespan.

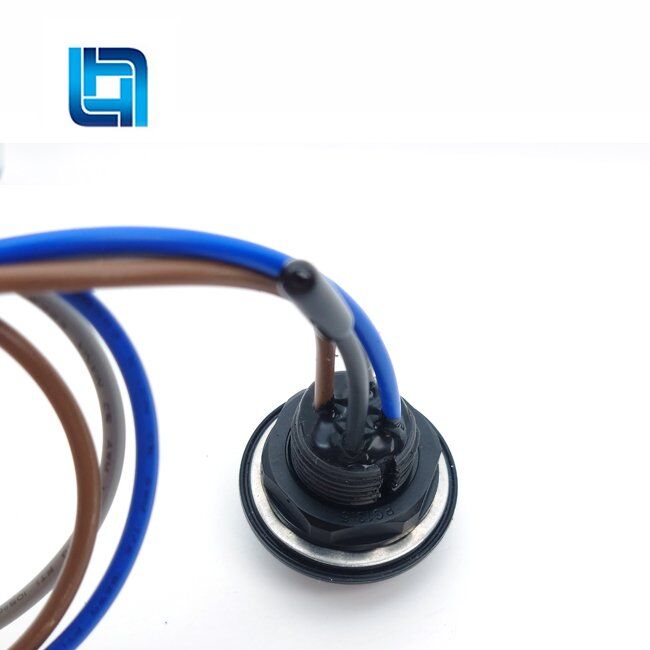

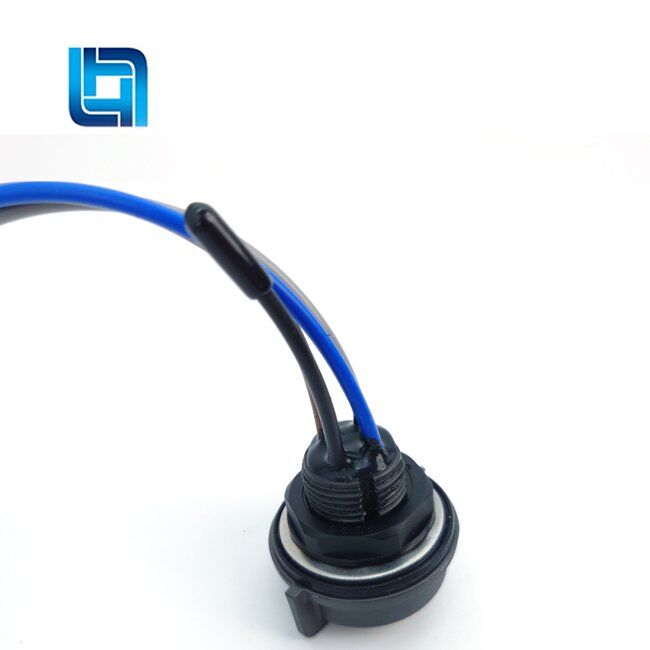

  2. IP68 Waterproofing – The socket base is sealed with waterproof adhesive to prevent moisture ingress through wiring gaps, reducing the risk of short circuits or damage.
  3.  Tinned Wire Ends – Facilitates easier installation and more reliable connections.

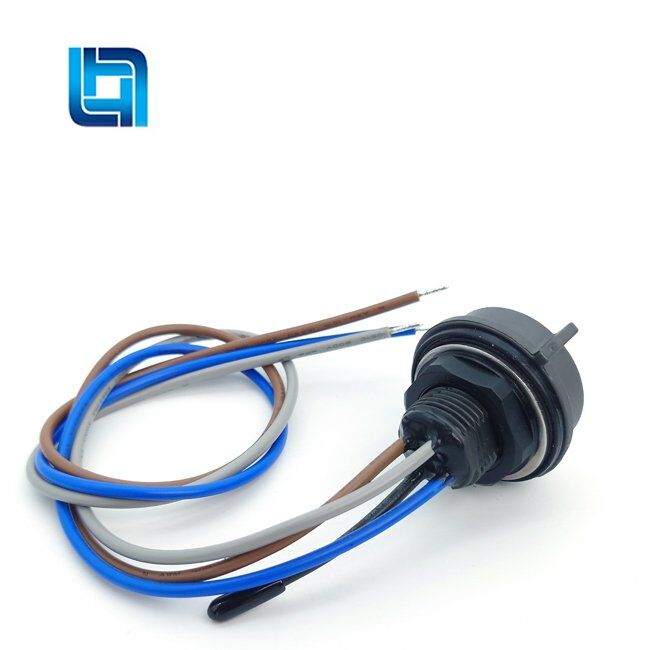

  4. Sealed Unused Wire – Pre-applied heat-shrink tubing eliminates installation hassle and enhances overall waterproof performance.
  5. With 304 stainless steel Internal Tooth Lock Washers – deliver outstanding anti-slip and anti-vibration capabilities, along with superior corrosion and oxidation resistance in marine environments with high salt spray and humidity.

Our sockets have helped many customers enhance product competitiveness, strengthen brand trust, and expand their market reach—for example, your local company TAKTON.

Enhanced Wire Stability

Enhance waterproof performance : IP68 Zhaga Socket

Improves resistance to oxidation and corrosion, thereby prolonging the lifespan of the socket.

Enhance waterproof performance + Easy installation

Tinned wire ends + Heat-shrink tubing to seal unused wire

(Lead Top Brand)



Features:

Supports multiple input voltages

CE Certification

ANSI C136.24 & UL773A compliant



Applications:Our product is widely used in various settings,

Street lighting

Outdoor LED lighting

Highways lighting

Parking lot lighting

Public areas lighting

Railway stations lighting

Airports

Farms

Parks

Schools
