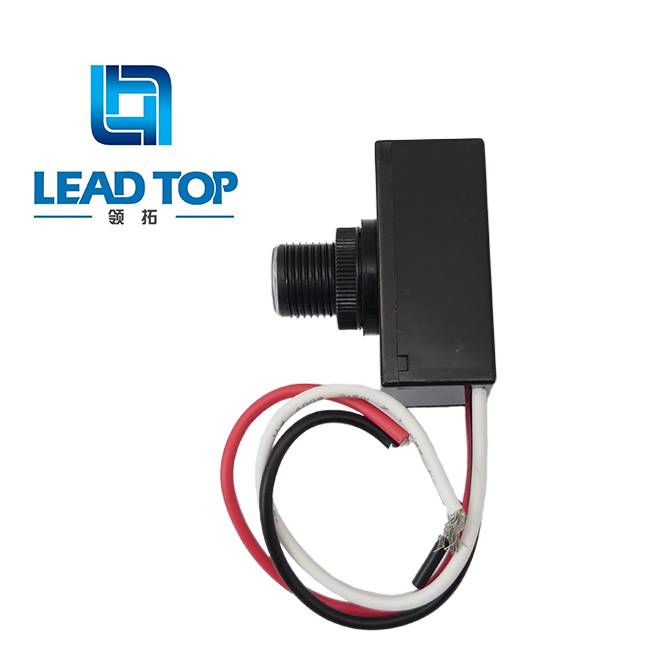

LT310A 12-48VDC Wire-in Type Photo Control Used for Landscape Lights/Barn Lights

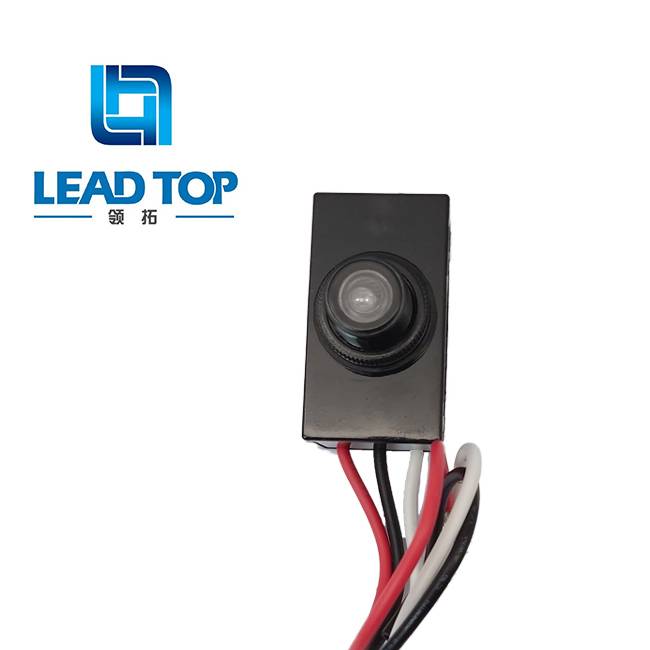

LT310A 12-48VDC Wire-in Type Photo Control Used for Landscape Lights/Barn Lights - Image 3

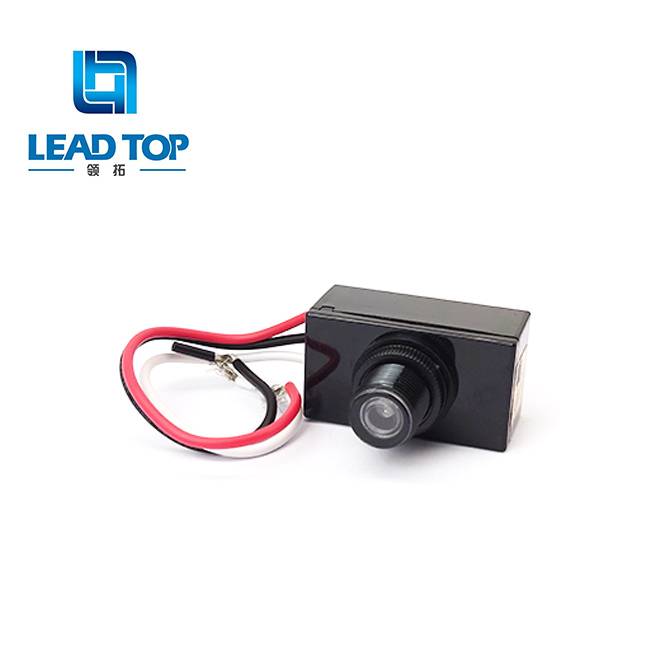

LT310A 12-48VDC Wire-in Type Photo Control Used for Landscape Lights/Barn Lights - Image 4

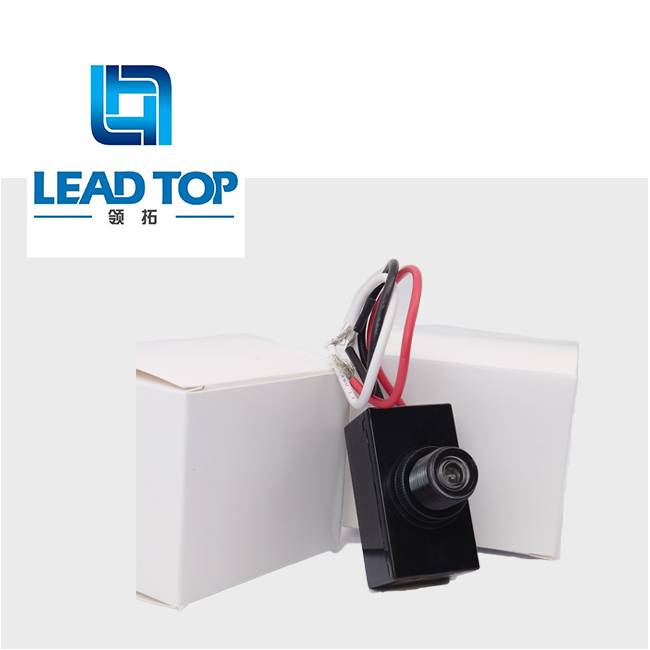

LT210A-F wire-in photocell with aluminium plate

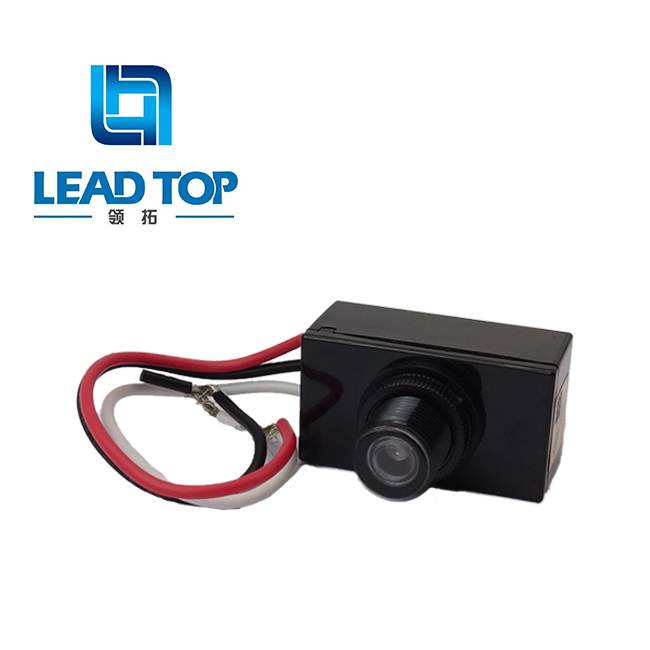

LT310A 12-48VDC Wire-in Type Photo Control Used for Landscape Lights/Barn Lights - Image 7

Our street lighting photocells are ANSI C136.10 compliant, providing a cost-effective and dependable solution for automated lighting control from dusk to dawn. Engineered to optimize lighting system performance and save energy, these photocells utilize advanced electronic circuitry and a stable phototransistor light sensor for consistent on/off functionalit.

LT310A is suitable for garden lights, park lights, charging piles, etc.

Product information
Model:LT310A-DC
Standard：ANSI C136.24 & UL773A
Rated Volts：12-48VDC
Rated Load：10A
Fail Mode：ON/OFF

Time Delay：3-10 Seconds
ON/OFF Ratio：1：1.5
Turn-On Light Levels：10-16 Lux
Switch：>10000 ON/OFF Operations at Rated Load
Power Consumption：≤ 0.5 watts

Categories Button photocell, Product, Wire-in Controllers

LT310A 12-48VDC Wire-in Type Photo Control Used for Landscape Lights/Barn Lights

LT310A-DC DC Wire-In Photocontrol for Solar, LED and Low-Voltage Outdoor Lighting

The Lead-Top LT310A-DC DC Wire-In Photocontrol is designed for DC lighting applications, including solar energy systems, LED lighting, conventional and electronic HID, and induction luminaires. It automatically controls lighting based on ambient light levels, providing reliable dusk-to-dawn operation for outdoor lighting systems.

With a 12–48VDC rated voltage, 10A rated load, IP66 protection, and a reliable sealed relay, the LT310A-DC is a practical solution for low-voltage outdoor lighting control.

Key Features

Manufactured according to ISO
Meets or exceeds ANSI C136.24
UL94 V-0 Flame Resistance
ROHS compliant
IR Filter Phototransistor
FR4 fiberglass printed circuit board
Reliable sealed relay
3-10 second time delay.
Customizing light level and time
Black cover standard
3 Years Warranty

Technical Specifications

Parameter	Specification
Model	LT310A-DC
Type	DC Wire-In Photocontrol
Rated Voltage	12–48VDC
Applicable Voltage	10–50VDC
Rated Load	10A
Turn-On Light Level	10–16 Lux
ON/OFF Ratio	1:1.5
Time Delay	3–10 seconds
Operating Temperature	-40°C to +70°C
Switch Life	>10,000 ON/OFF operations
Light Sensor	IR Filter Phototransistor
Power Consumption	≤0.5W
Ingress Protection	IP66
Cover Material	Anti-UV Impact-Resistant Polycarbonate
PCB	FR4 Fiberglass
Relay	Reliable Sealed Relay
Flame Resistance	UL94 V-0
Cable	UL1015 18AWG × 16cm
Fail Mode	ON/OFF
Warranty	3 Years

Internal installation can be achieved in two ways:

1.Installed inside the lighting fixture – the photocell is integrated directly into the fixture housing.

2.Wall-mounted with a mounting plate – the wire-in photocell is installed on a wall using an optional aluminum or stainless-steel mounting plate, available in rectangular or square shapes.

Advantages:

Protects the photocell from direct exposure to rain, dust, UV rays, and physical damage.
Provides a cleaner and more integrated appearance.
Suitable for lighting fixtures where the photocell can be built into the fixture housing.

Accessories for Wire-In Photocells

standard equipment includes:

1 × Nut
1 × Waterproof Gasket

Additional purchase：

1 × Optional Wall-Mounting Plate – available in aluminum or stainless steel, with rectangular or square options,It’s not standard equipment, Procurement based on demand.

In short: Internal installation provides better protection and a cleaner appearance, while the optional mounting plate offers greater flexibility for wall-mounted applications.

Wiring Diagram

Features:

Supports multiple input voltages

CE Certification

ANSI C136.24 & UL773A compliant

Applications:

Our product is widely used in various settings,

Street lighting

Outdoor LED lighting

Highways lighting

Parking lot lighting

Public areas lighting

Railway stations lighting

Landscape Lights

Barn Lights
