Smart City Street light Wireless Photocell Switch and NEMA 7 PIN Photocell Base

Our street lighting photocells are ANSI C136.10 compliant, providing a cost-effective and dependable solution for automated lighting control from dusk to dawn. Engineered to optimize lighting system performance and save energy, these photocells utilize advanced electronic circuitry and a stable phototransistor light sensor for consistent on/off functionalit

TECHNICAL SPECIFICATION

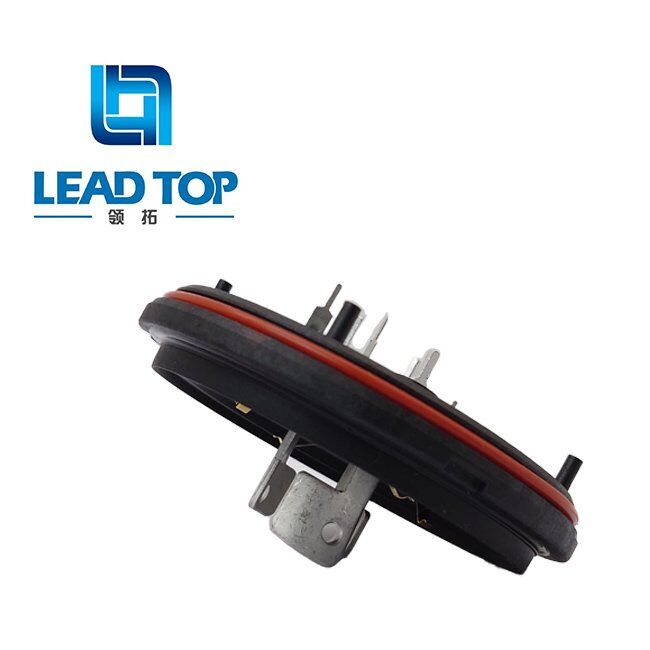

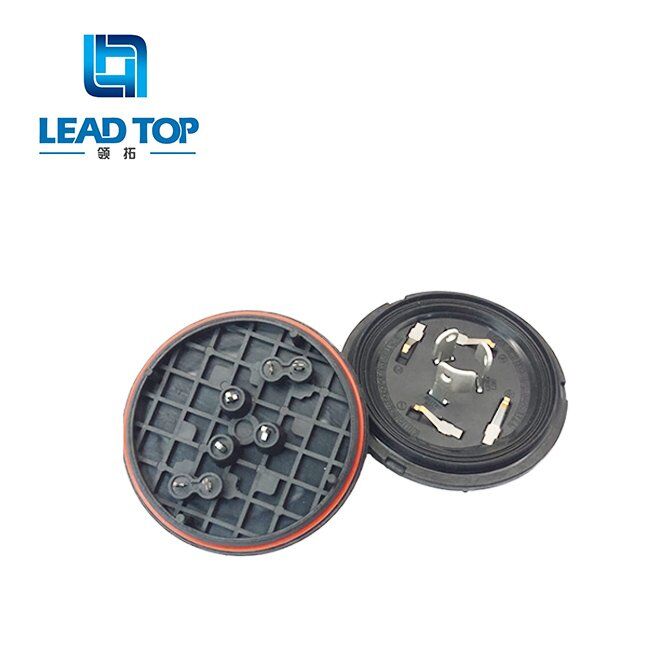

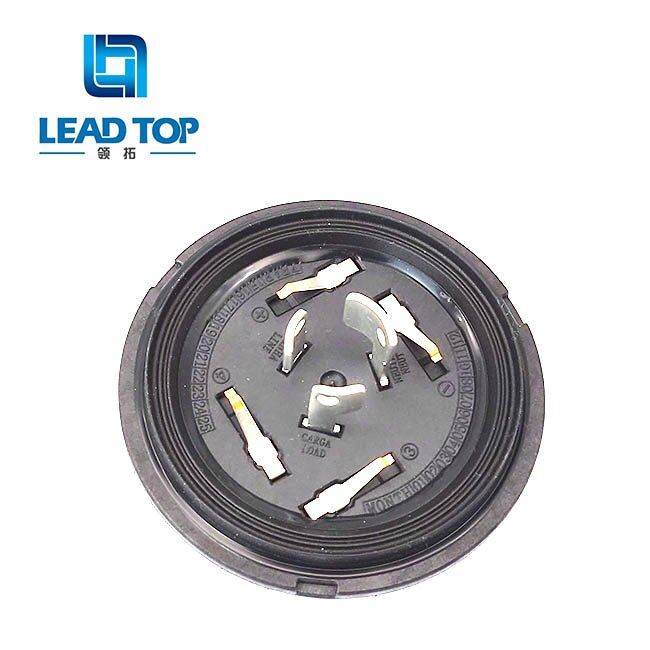

BASE LT100B-5PIN & 7PIN
Standard :ANSI C136.41-2013
Rated Voltage Power: 0-480VAC (Contact: 0-30VDC)
Rated Load Power: 15A (Contact: 250mA)
Base :High Temperature Resistance
Polybutylene Terephthalate (PBT)
Power Pin :Brass with Tin Plate
Contact Pin :Phosphor Copper with tinplating and
gold plating on contact segment
5 Position :3 power contacts
2 dimming/signal contacts
7 Position :3 power contacts
4 dimming/signal contacts
Operating Temperature :-40℃ to +70℃

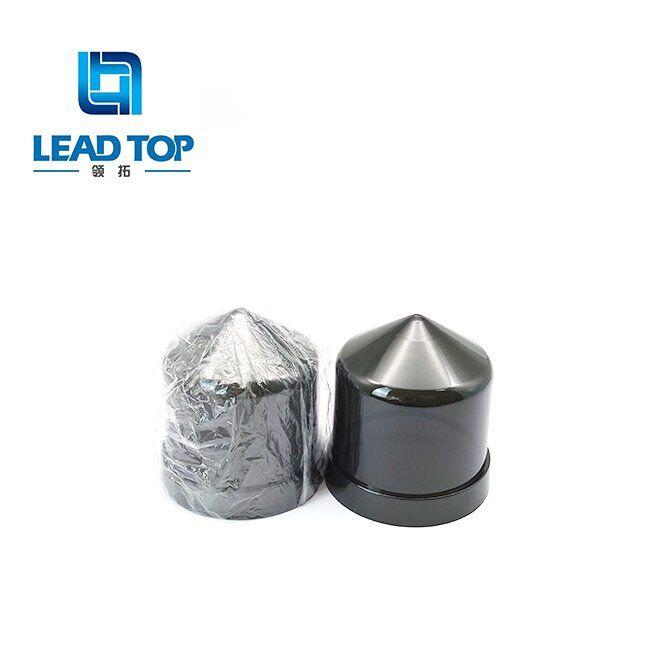

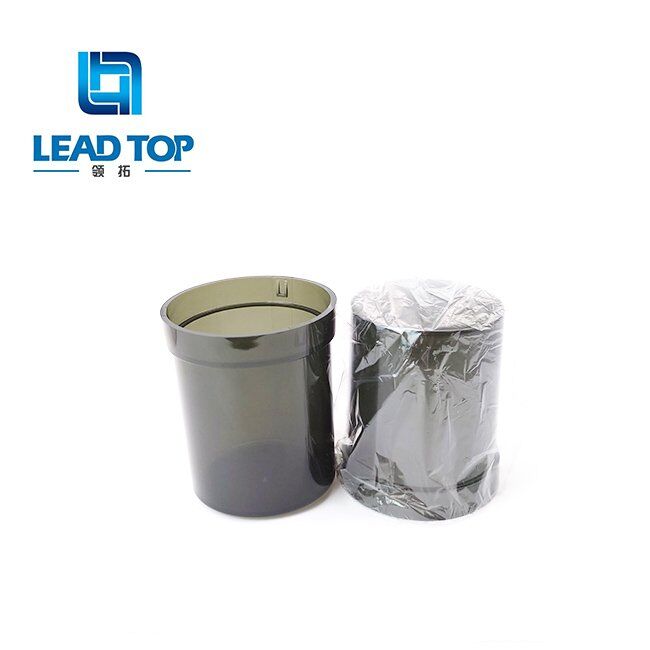

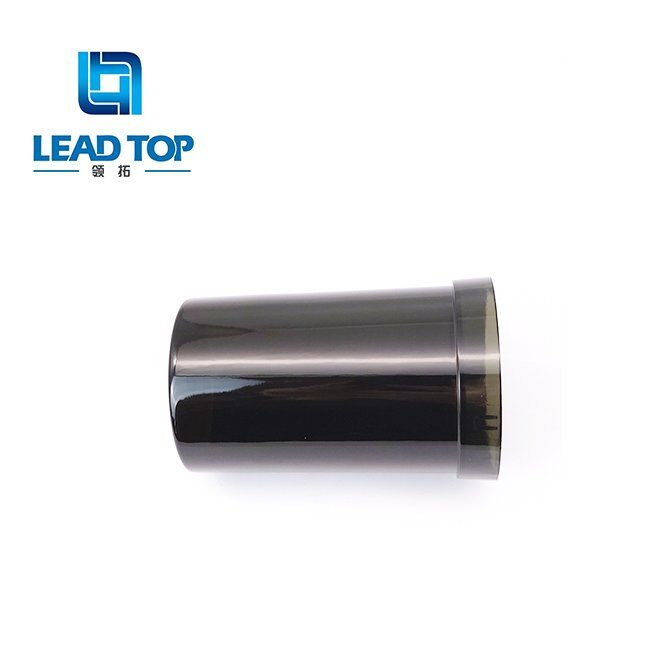

COVER LT100C – C3090 & C3100 & C3130
Material :Anti-UV Impact Resistance
Polycarbonate
Thickness :3mm
Height:
LT100C-C3090: 90mm
LT100C-C3100: 100mm

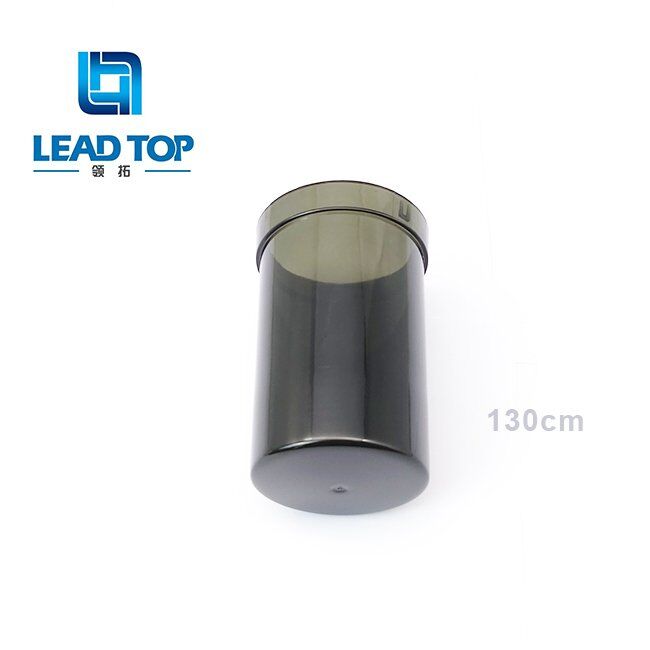

LT100C-C3130: 130mm
Operating Temperature :-40℃ to +70℃
Color :Clear Black

Smart City Street light Wireless Photocell Switch and NEMA 7 PIN Photocell Base

DIMENSION

Applications:Our product is widely used in various settings

  • Street lighting
  • Outdoor LED lighting
  • Highways lighting
  • Parking lot lighting
  • Public areas lighting
  • Railway stations lighting
  • Airports
  • Farms
  • Parks
  • Schools
