Our street lighting photocells are ANSI C136.10 compliant, providing a cost-effective and dependable solution for automated lighting control from dusk to dawn. Engineered to optimize lighting system performance and save energy, these photocells utilize advanced electronic circuitry and a stable phototransistor light sensor for consistent on/off functionalit
Product information
Model:LT112/LT113
Standard:ANSI C136.10 & UL773
Rated Volts:240V/208-277V
Rated Load:2000W/2000VA/5A E-Ballast
Turn-On Light Levels:10-16 Lux
ON/OFF Ratio:1:5
Time Delay:30-180 Seconds
Switch:>5000 ON/OFF Operations at Rated Load
Power Consumption:≤ 0.7 watts at 120VAC
Cover:Anti-UV Impact Resistance Polypropylene
Base:High Temperature Resistance Polybutylene Terephthalate
Fail Mode:ON
IP: 65/67

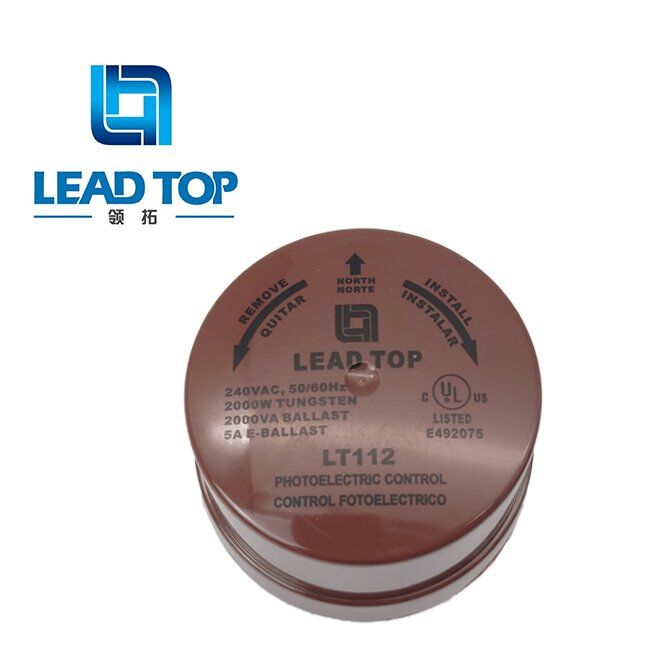

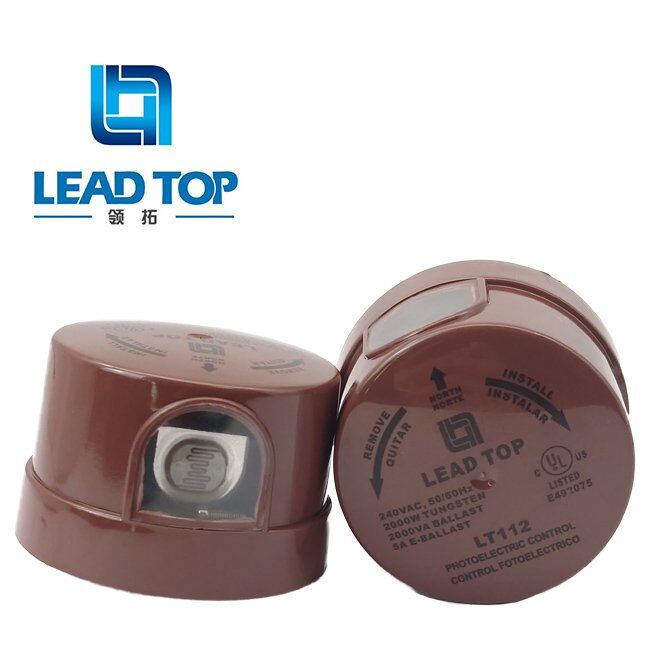

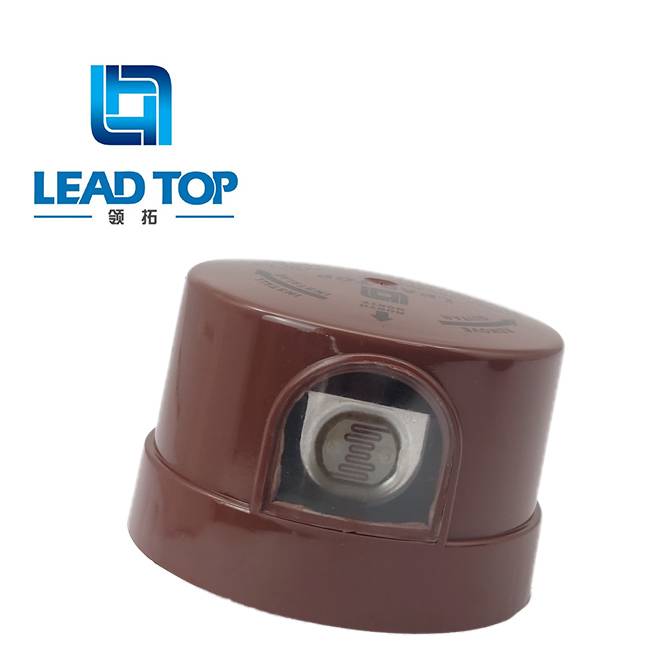

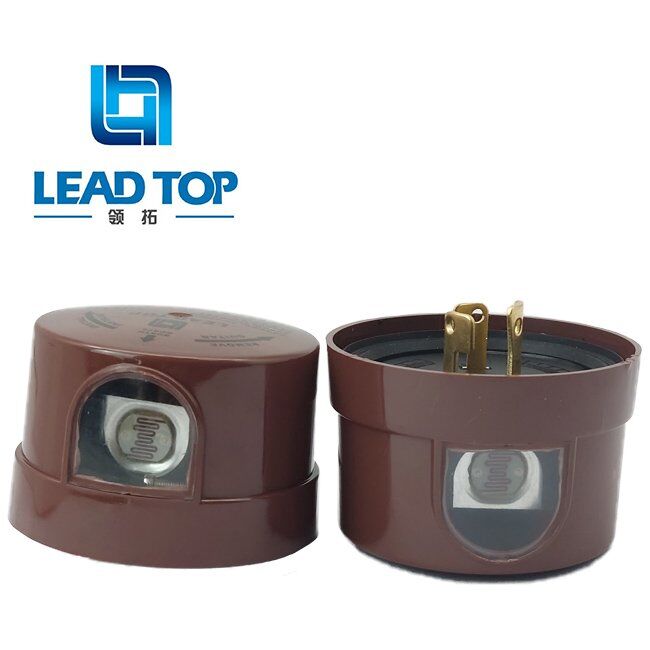

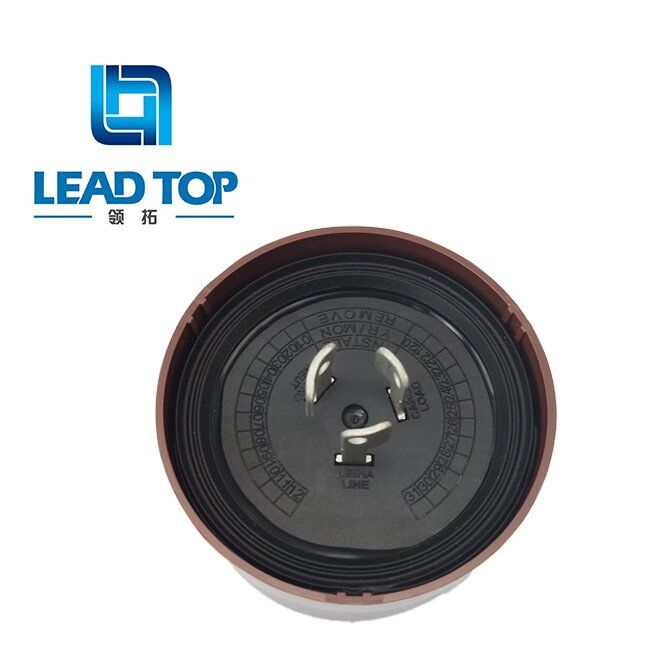

The LT112 and LT113 are thermally operated dusk-to-dawn photocells designed for reliable street and outdoor lighting. The LT112 operates at 240V, while the LT113 supports 208–277V, both handling up to 2000W/2000VA and 5A loads for consistent performance. With customizable housing colors and IP67 waterproof protection, these photocells deliver long-lasting, energy-efficient operation in any environment. LT112 and LT113 — dependable photocontrols for modern lighting systems.


| 项目 | 参数 |
|---|---|
| Standard | ANSI C136.10 & UL773 |
| Rated Volts | 240V |
| Rated Load | 2000W/2000VA/5A E-Ballast |
| Frequency | 50/60 Hz |
| Turn-On Light Levels | 10-16 Lux |
| Turn-Off Light Levels | <65 Lux |
| Time Delay | 30-180 Seconds |
| ON/OFF Ratio | 1:5 |
| Operating Temperature | -40°C to +70°C |
| Switch | > 5000 ON/OFF Operations at Rated Load |
| Fail Mode | ON |
| Light Sensor | Cadmium Sulfide (Cds) Cell |
| Cover | UV stabilized impact resistant Polypropylene |
| Base | High Temperature Resistance Polybutylene Terephthalate |
| Ingress Protection | IP66 (Optional: IP67) |
| Dielectric Strength | 5KV |
| Resistance to Moisture | 98% |
| Interrupting Capacity | 8.3A |


Our product is widely used in various settings,
