180 Degree Rotate Stem Photocell Sensor 120VAC with Sunshade Cap and Waterproof Heat Shrink Tubing

Our street lighting photocells are ANSI C136.10 compliant, providing a cost-effective and dependable solution for automated lighting control from dusk to dawn. Engineered to optimize lighting system performance and save energy, these photocells utilize advanced electronic circuitry and a stable phototransistor light sensor for consistent on/off functionalit.

Product information
Model:LT310F1F/2F
Standard:ANSI C136.24 & UL773A
Rated Volts:120-277V
Rated Load:1000W/1800VA/2A E-Ballast
1000W/1800VA/5A E-Ballast
ON/OFF Ratio:1:1.5

Fail Mode:ON
Turn-On Light Levels:10-16 Lux
Time Delay:3-15 Seconds
Switch:>10000 ON/OFF Operations at Rated Load
Power Consumption:≤ 0.7 watts at 120VAC
Light Sensor:IR Filter Phototransistor
Housing:Anti-UV Impact Resistance Polycarbonate(PC)
Cabe:UL1015 18AWG*16cm

180 Degree Rotate Stem Photocell Sensor 120VAC with Sunshade Cap and Waterproof Heat Shrink Tubing

LT310F Wire-in photocell

LT310F

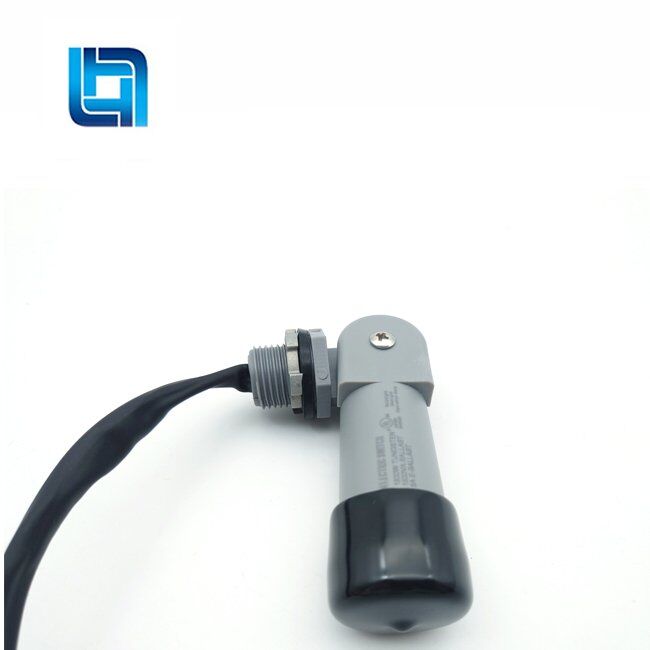

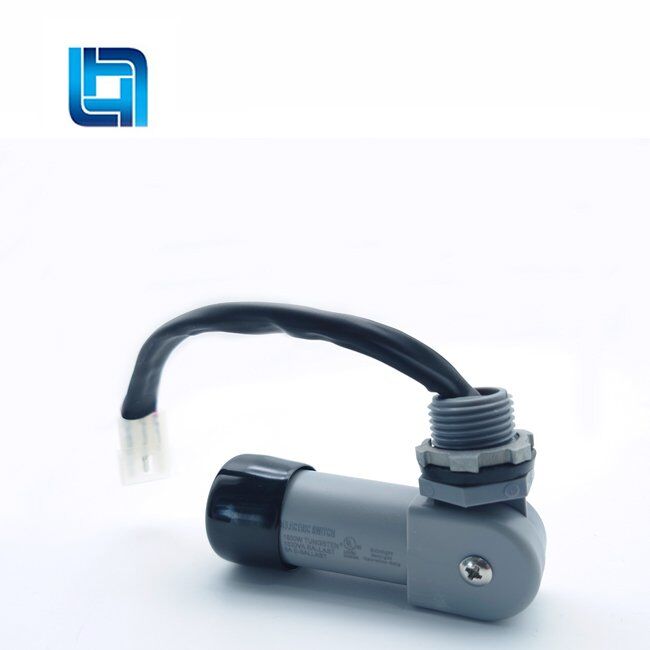

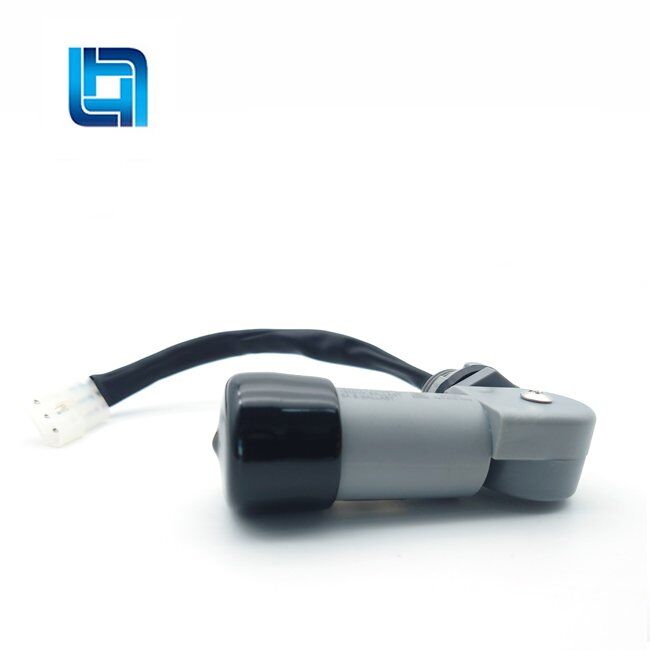

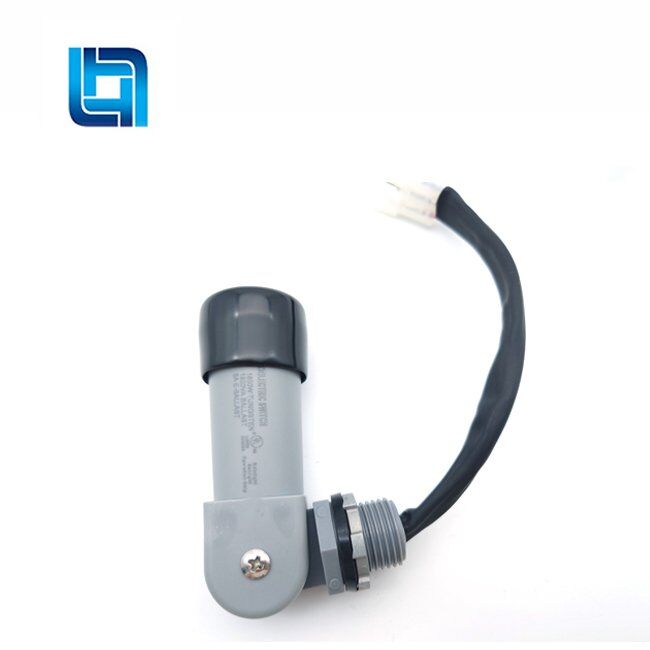

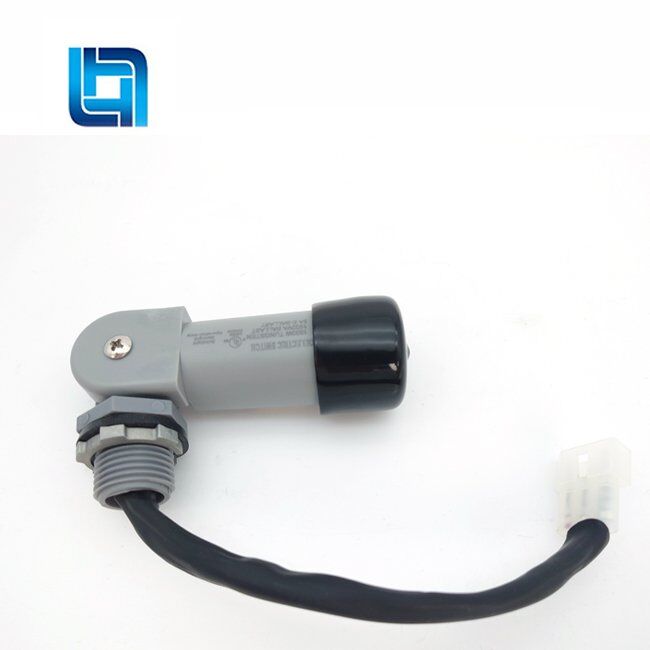

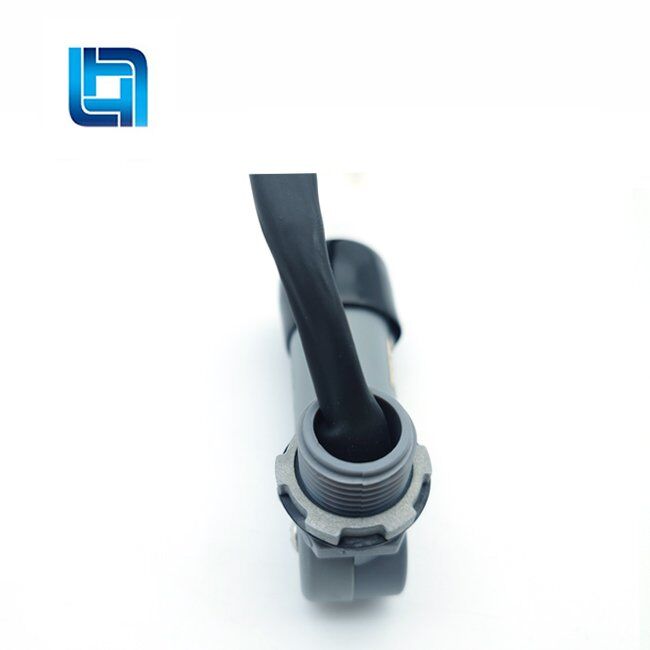

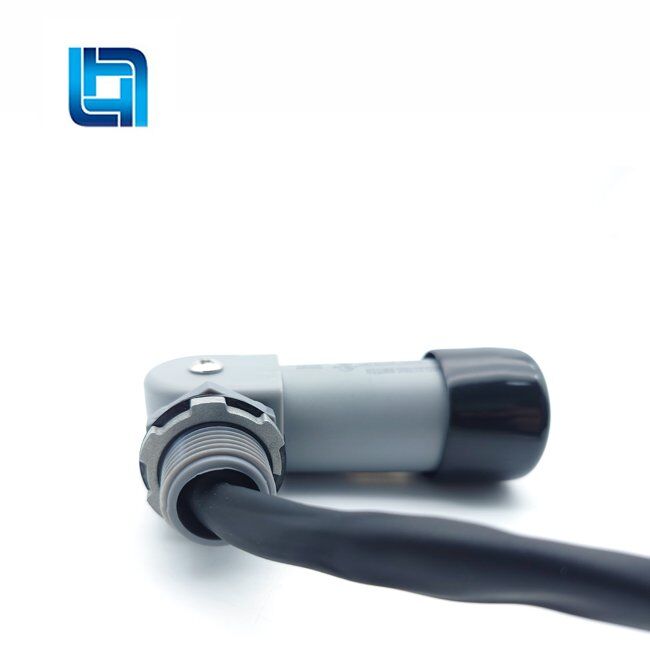

LT310F with Sunshade cap and waterproof heat shrink tubing

This product is not equipped with a shading cap by default in conventional applications. A shading cap is only selected in special scenarios where the lamp needs to be always on (such as basements, poorly ventilated areas, etc.) to avoid false operation of the light control.
In addition, the outer layer of the cable is reinforced with a heat shrink tube, which significantly improves the waterproof performance and durability of the product, making it more suitable for long-term stable operation in outdoor or humid environments.

Features:

Supports multiple input voltages

CE Certification

ANSI C136.24 & UL773A compliant



Applications:Our product is widely used in various settings,

Street lighting

Outdoor LED lighting

Highways lighting

Parking lot lighting

Public areas lighting

Railway stations lighting

Airports

Farms

Parks

Schools
