4PIN Zhaga Socket Wiring Diagram

Customizable zhaga sockets, currently 6 models available

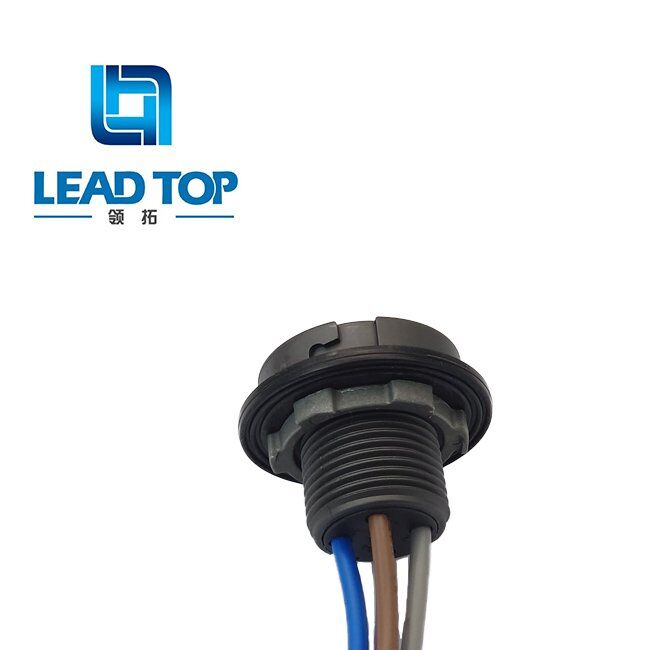

1.	basic zhaga socket:
2.	Customizable Upgraded zhaga socket-1
3.	Customizable Upgraded zhaga socket
4.	Customizable Upgraded zhaga socket(with bracket)
5.	Customizable Upgraded zhaga socket (With Bracket)
6.	Customizable Upgraded zhaga socket (wireless)

Compatible Zhaga light controllers

1	O-10V DIMMING LT6001 ZHAGA BOOK 18 SENSOR
2	DALI DIMMING LT6002 ZHAGA BOOK 18 SENSOR

zhaga Accessories

Comparison video with other Zhaga light controls

To ensure long-term reliability, we’ve made some key improvements:

1. Enhanced Wire Stability – Dual crimping technology ensures a stronger wire connection, improving fixture stability and lifespan.

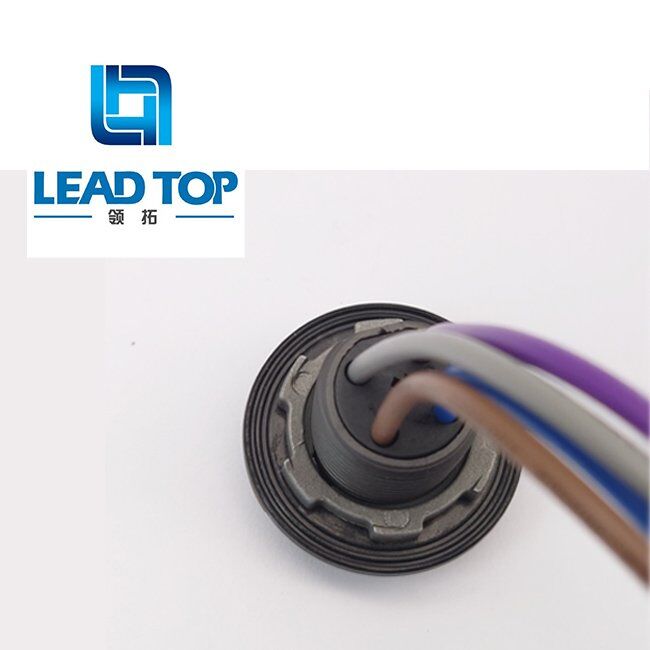

2. IP68 Waterproofing – The socket base is sealed with waterproof adhesive to prevent moisture ingress through wiring gaps, reducing the risk of short circuits or damage.
3.  Tinned Wire Ends – Facilitates easier installation and more reliable connections.
4. Sealed Unused Wire – Pre-applied heat-shrink tubing eliminates installation hassle and enhances overall waterproof performance.

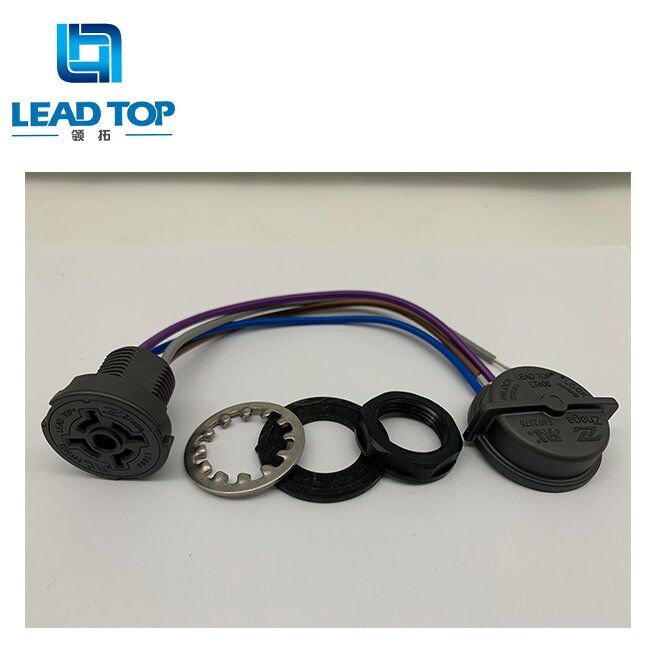

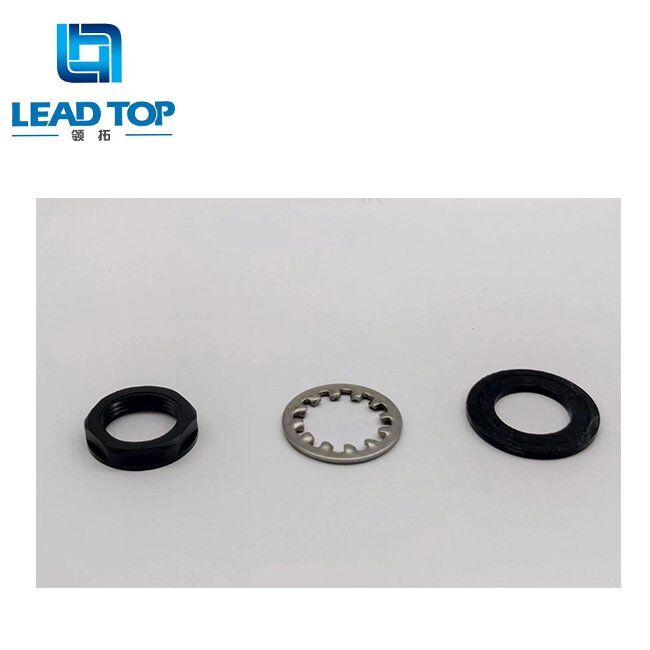

5. With 304 stainless steel Internal Tooth Lock Washers – deliver outstanding anti-slip and anti-vibration capabilities, along with superior corrosion and oxidation resistance in marine environments with high salt spray and humidity.

Our sockets have helped many customers enhance product competitiveness, strengthen brand trust, and expand their market reach—for example, your local company TAKTON.

Enhanced Wire Stability

Enhance waterproof performance : IP68 Zhaga Socket

Improves resistance to oxidation and corrosion, thereby prolonging the lifespan of the socket.

Enhance waterproof performance + Easy installation

Tinned wire ends + Heat-shrink tubing to seal unused wire

(Lead Top Brand)

Features:

Supports multiple input voltages

CE Certification

ANSI C136.24 & UL773A compliant

Applications:Our product is widely used in various settings,

Street lighting

Outdoor LED lighting

Highways lighting

Parking lot lighting

Public areas lighting

Railway stations lighting

Airports

Farms

Parks

Schools
