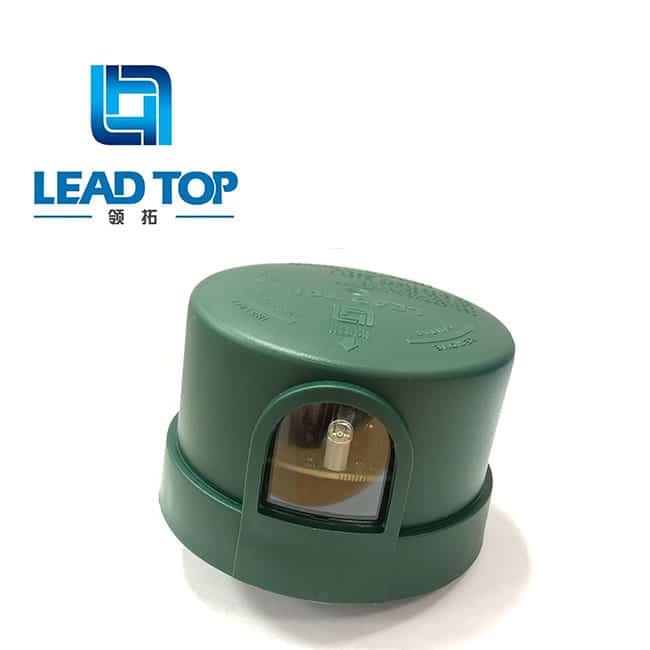

LT134 Long-Life Zero-Crossing Photocell

Municipal-Grade Photocontrol for Street & Area Lighting

The LT134 photocell is a long-life, zero-crossing electronic photocontrol specifically developed for municipal tender projects in Central and South America. Designed to comply with stringent electrical, environmental, and safety standards, LT134 fully meets the requirements of ANSI C136.10-2017 and UL 773, ensuring smooth approval and reliable performance in regulated markets.

Engineered for durability and stability, LT134 is widely used in street lighting, roadways, parking lots, security lighting, and commercial outdoor lighting systems. Its advanced zero-crossing technology effectively reduces inrush current, making it especially suitable for modern LED luminaires and large-scale municipal lighting networks.

By automatically switching lighting ON at dusk and OFF at dawn, LT134 helps municipalities reduce energy consumption, extend luminaire life, and ensure consistent lighting performance under varying environmental conditions.

Key Advantages

• Zero-Crossing Detection Technology
  Minimizes inrush current and protects LED drivers and ballasts, improving system reliability and lifespan.

• Wide Voltage Range
  Applicable voltage: 105–305VAC, 50/60Hz, ideal for unstable grid environments.

• High Surge Protection
  MOV rated up to 1425 Joules (20kA / 10kV), providing excellent protection against lightning and power surges.

• Municipal-Grade Durability
  Sealed relay, FR4 fiberglass PCB, and UV-resistant housing ensure long-term outdoor performance.

• Long Service Life
  More than 15,000 ON/OFF operations at rated load, with an 8–10 year warranty.

• Superior Environmental Protection
  Standard IP66, optional IP67, suitable for harsh outdoor conditions.

Customization Options

LT134 offers extensive customization to meet different project and tender requirements:

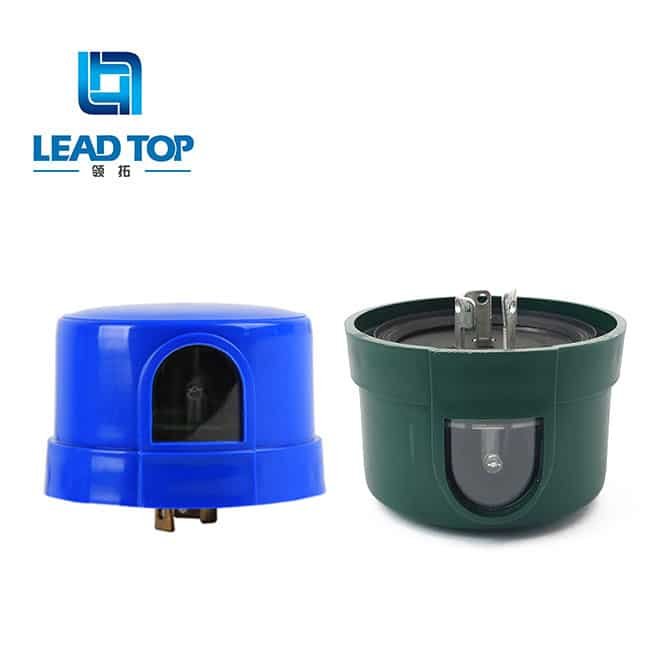

• Cover Color: Black / Green / Blue / Transparent (custom colors available)

• Turn-ON / Turn-OFF Lux Levels: Customizable

• Time Delay: Configurable according to project needs

• Fail Mode: Fail-OFF or Fail-ON

• Surge Protection Level: 475J / 950J / 1425J

• Ingress Protection: IP66 or IP67

Standards & Certifications

• ANSI C136.10-2017

• UL 773

• UL / CE / RoHS

• IK08 Impact Rating

• IP66 / IP67

Typical Applications

• Municipal street and roadway lighting

• Parking lot and area lighting

• Security and perimeter lighting

• Commercial and industrial outdoor lighting

LT134 Photocell — a proven, high-performance solution for municipal lighting projects, delivering reliability, compliance, and long-term energy efficiency.

TECHNICAL SPECIFICATION

Applications:

Our product is widely used in various settings,

Street lighting

Outdoor LED lighting

Highways lighting

Parking lot lighting

Public areas lighting

Railway stations lighting

Airports

Farms

Parks

Schools
