Zhaga Book 18 LED Luminaire Control Solution

LT600 Receptacle + LT6001 0-10V Sensor + LT6002 DALI Sensor

Lead-Top’s Zhaga Book 18 solution provides a modular interface and photocell control system for LED luminaires.

The solution consists of three coordinated products：

Zhaga book 18 led luminaire control solution – lt600 receptacle with lt6001 & lt6002 sensors

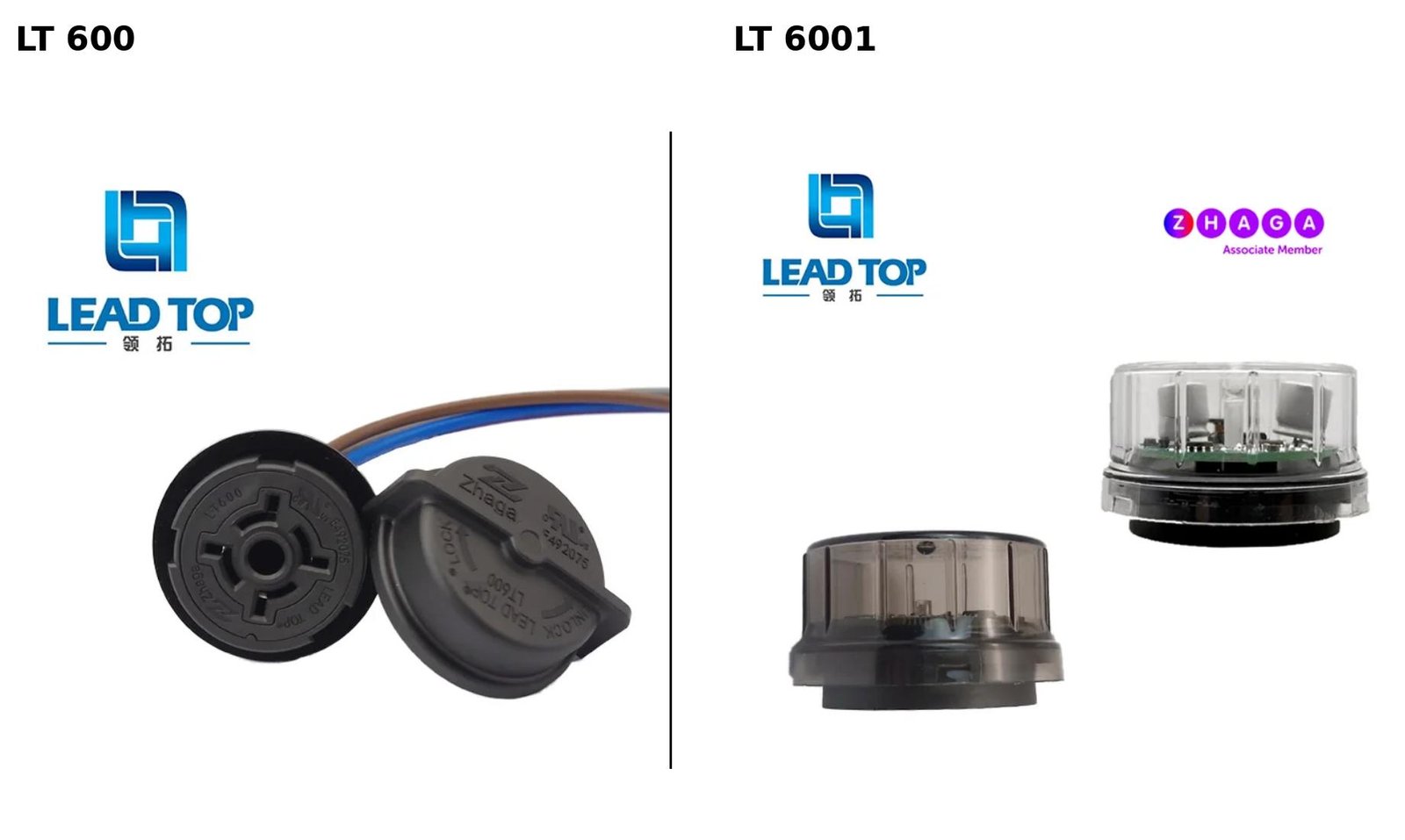

LT600 Zhaga Receptacle		The Zhaga Book 18 interface installed on the LED luminaire.	Product Link：https://leaditop.com/product-category/product/zhaga-control/zhaga-sockcet/
LT6001 Zhaga Sensor		A photocell controller designed for LED drivers with 0-10V dimming control.	Product Link：https://leaditop.com/product/12-24vdc-zhaga-lighting-controller-lt6001-connected/
LT6002 Zhaga Sensor		A photocell controller designed for LED drivers with DALI control.	Product Link：https://leaditop.com/product/zhaga-socket-connected-dali-2-0-protocol-and-0-10v-dimming-control-luminaire-lighting-2/

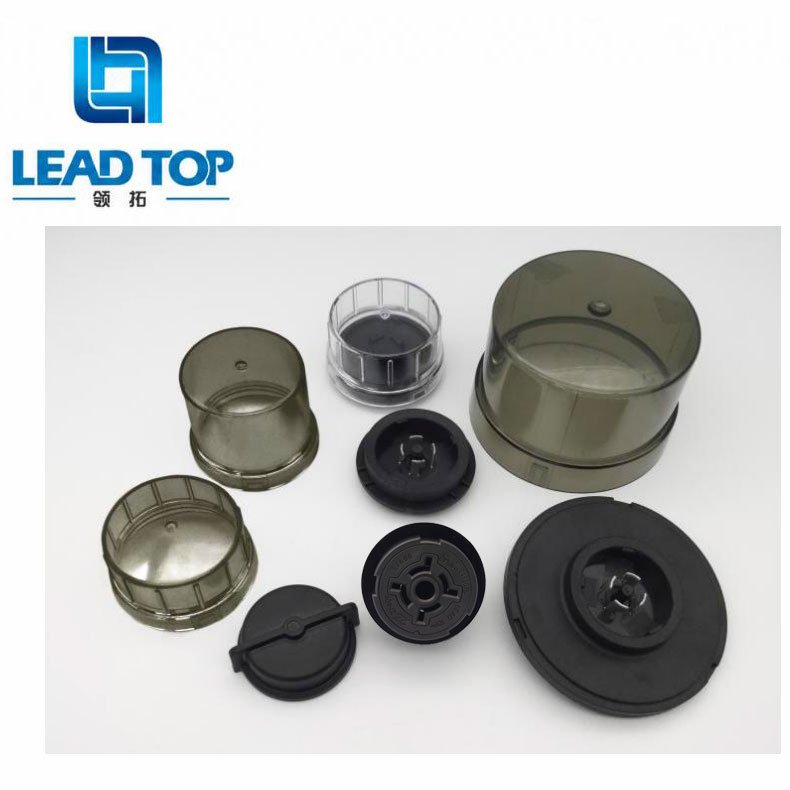

Photocell controller housing Accessory Selection Information		Available housing heights: 25mm, 40mm, 55mm Available bases: Φ40 base, Φ76 base	Product Link：https://leaditop.com/product/zigbee-wireless-controller-accessories-zhaga-series-product-base-and-cover/

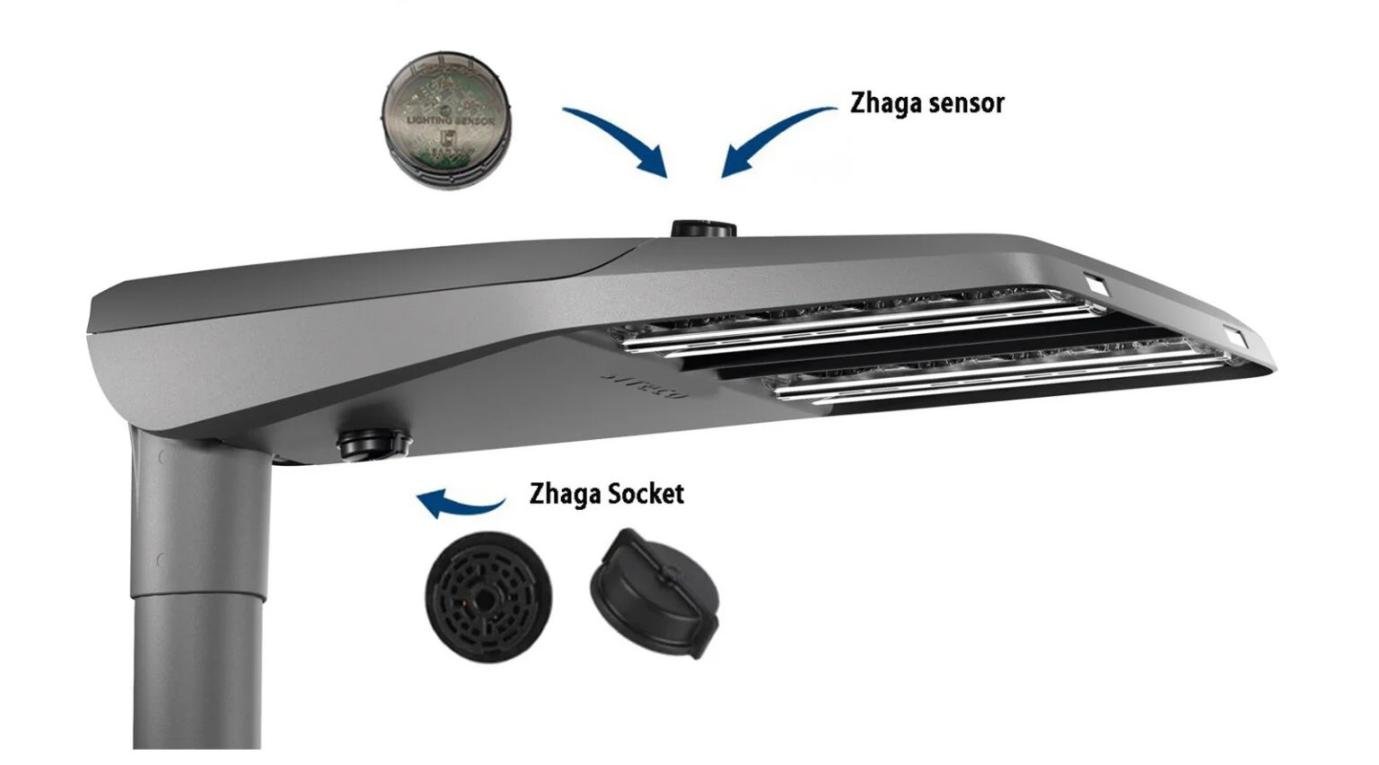

Zhaga sockets can be installed on either the top or the bottom of a luminaire. In the design of smart streetlights and outdoor lighting, they can be installed at both positions simultaneously or placed according to specific requirements. The LT6001 or LT6002 sensor can then be mounted to the receptacle according to the driver’s control interface.

4PIN Zhaga Socket Wiring Diagram

This modular design allows luminaire manufacturers and lighting projects to select the appropriate control method without changing the basic Zhaga interface on the fixture.

Easy to install

LT600 Zhaga Receptacle

The LT600 Zhaga Receptacle provides the standardized Zhaga Book 18 interface between an LED luminaire and a compatible lighting controller.

Designed for installation directly on LED luminaires, the LT600 provides a compact connection point for Zhaga lighting sensors and controllers.

Key Specifications

• Standard: Zhaga Book 18
• Rating: 1.5A, 30V
• 4-pin contacts
• Pin 1: 24VDC
• Pin 2: DALI−
• Pin 3: DALI+
• Pin 4: General I/O
• Protection: IP66 & IK09
• Housing: High-temperature-resistant PBT
• Gasket: Silicone
• Mounting ring: Aluminum
• Wire: UL1015 18AWG

Optional Customized Zhaga

1. Basic Zhaga Socket	2. Customizable Upgraded Zhaga Socket	3. IP68 Zhaga Socket	4. Zhaga Socket With Bracket	5. IP68 Zhaga Socket With Bracket	6. Wireless Zhaga Socket	Accessories Zhaga Accessories
Designed for installation directly on LED luminaires, the LT600 provides a compact connection point for Zhaga lighting sensors and controllers.	Customizable Zhaga socket designed for reliable outdoor lighting applications and easy integration with Zhaga-compatible sensors and controllers.	Highly waterproof IP68 Zhaga socket designed for demanding outdoor lighting environments and reliable sensor or controller connection.	IP68 Zhaga socket with bracket, providing flexible mounting options for LED luminaires and outdoor lighting applications.	Customizable IP68 Zhaga socket with bracket, designed for secure installation and reliable outdoor lighting control.	Wireless Zhaga socket designed for smart lighting applications and integration with wireless lighting control systems.	Zhaga Accessories include: a dust cap, a nut, a waterproof gasket, and an internal-tooth lock washer.

Optional customized Zhaga-Video Showcase

The LT600 is suitable for LED luminaires used in street lighting, area lighting, parking lots, security lighting, roadway lighting and other outdoor lighting applications.

LT6001 Zhaga Photocell Sensor – 0-10V Driver

The LT6001 is a Zhaga Book 18 lighting controller designed for LED luminaires equipped with 0-10V dimming drivers.

It uses an IR-filter phototransistor to detect ambient light and automatically control the luminaire according to natural lighting conditions.

The LT6001 is installed on the LT600 Zhaga Receptacle, creating a compact photocell control solution for LED luminaires.

Key Features

• Zhaga Book 18 interface
• Designed for 0-10V LED drivers
• Automatic dusk-to-dawn lighting control
• IR-filter phototransistor
• Turn-on light level: 10-16 Lux
• Time delay: 3-10 seconds
• Operating temperature: -40°C to +70°C
• More than 10,000 ON/OFF operations
• IP66 ingress protection
• Power supply: 12-24VDC
• Power consumption: ≤0.5W
• Anti-UV impact-resistant polycarbonate cover
• High-temperature-resistant PBT base
• Fail mode: ON

LT6002 Zhaga Photocell Sensor – DALI Driver

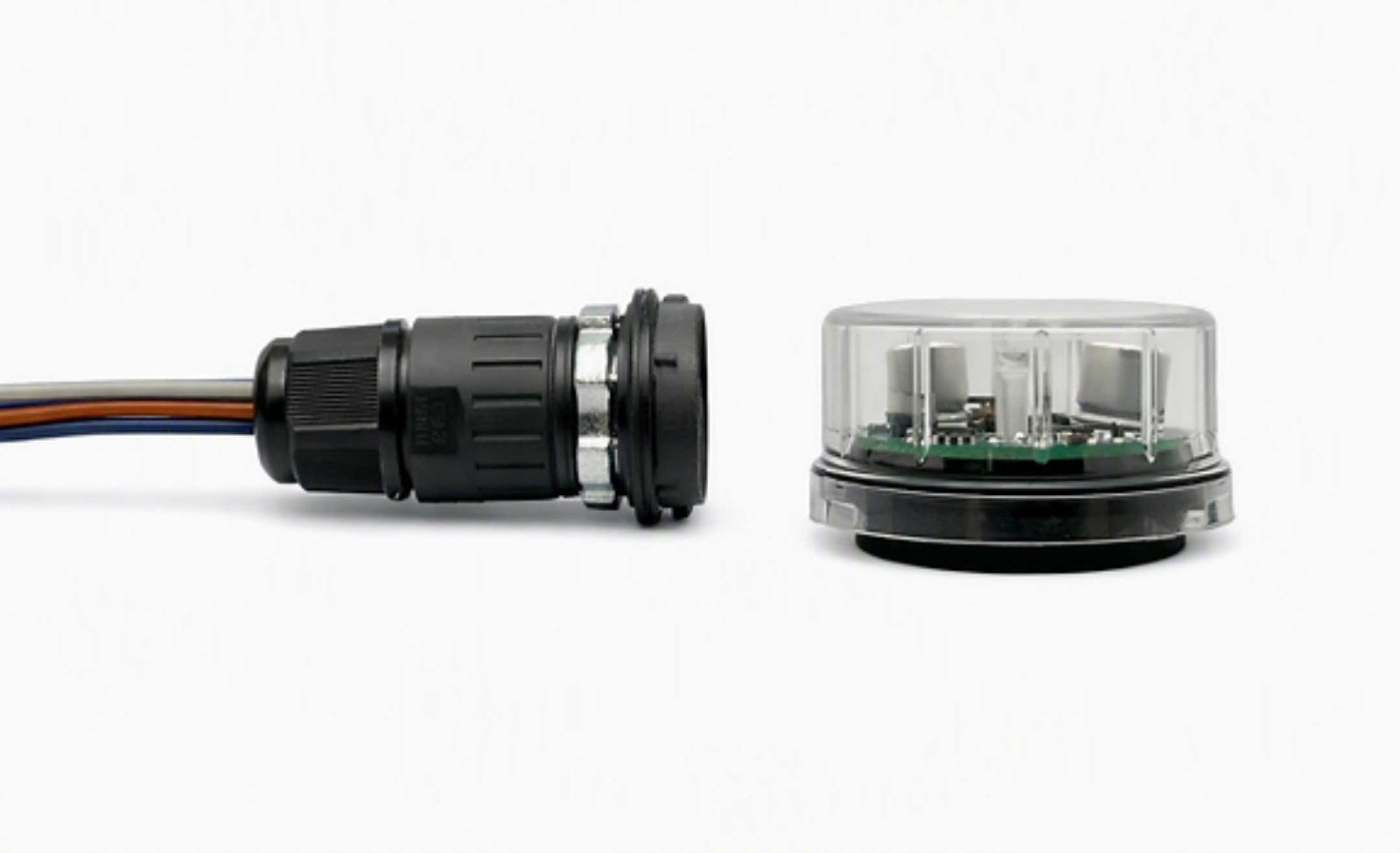

The LT6002 is designed for LED luminaires equipped with DALI-controlled LED drivers.

Like the LT6001, the LT6002 is installed on the LT600 Zhaga Receptacle and provides automatic lighting control according to ambient natural light.

It is suitable for LED streetlights, area lighting, outdoor luminaires and city lighting systems that use DALI-based control.

Key Features

• Zhaga Book 18 interface
• Designed for DALI LED drivers
• Automatic dusk-to-dawn control
• IR-filter phototransistor
• Turn-on light level: 10-16 Lux
• Time delay: 3-10 seconds
• Operating temperature: -40°C to +70°C
• More than 10,000 ON/OFF operations
• IP66 ingress protection
• 12-24VDC operating supply
• Low power consumption
• Anti-UV polycarbonate cover
• High-temperature-resistant PBT base
• Fail mode: ON

One Zhaga Interface, Two Control Options

The LT600 system gives LED luminaire manufacturers a flexible way to support different lighting control technologies.

For 0-10V LED Drivers

LT600 Zhaga Receptacle + LT6001 Sensor

The LT600 provides the Zhaga Book 18 interface, while the LT6001 provides ambient-light sensing and control for 0-10V driver applications.

For DALI LED Drivers

LT600 Zhaga Receptacle + LT6002 Sensor

The LT600 provides the Zhaga Book 18 interface, while the LT6002 provides ambient-light sensing and control for DALI driver applications.

Product Selection

How the LT600 Zhaga System Works

Step 1 – Install the Receptacle

The LT600 Zhaga Receptacle is installed directly on the LED luminaire.

Step 2 – Connect the Luminaire Driver

The receptacle provides the standardized Zhaga Book 18 electrical interface for the lighting control device.

Step 3 – Select the Appropriate Sensor

Choose:

• LT6001 for 0-10V LED drivers
• LT6002 for DALI LED drivers

Step 4 – Install the Sensor

The selected Zhaga sensor is mounted onto the LT600 receptacle, creating the complete photocell control assembly.

Applications

The LT600 series is designed for LED luminaires requiring automatic lighting control and is suitable for:

• LED street lighting
• Roadway lighting
• Area lighting
• Parking lot lighting
• Outdoor LED luminaires
• Public area lighting
• Security lighting
• City lighting systems
• Smart lighting-ready luminaires

Why Choose the LT600 Zhaga Solution?

Modular Design

The receptacle and sensor are separated into two components, allowing the luminaire interface to remain standardized while the control technology can be selected according to the LED driver.

Two Driver Options

Support both major dimming/control configurations:

0-10V → LT6001

DALI → LT6002

Zhaga Book 18 Interface

The LT600 follows the Zhaga Book 18 interface, providing a standardized connection between the LED luminaire and compatible control devices.

Reliable Outdoor Construction

The system uses materials and protection features designed for outdoor LED lighting applications, including a PBT housing, silicone gasket and IP-rated protection.

Automatic Dusk-to-Dawn Control

The LT6001 and LT6002 use an IR-filter phototransistor to detect ambient light and automatically control the luminaire according to natural lighting conditions.

Designed for LED Luminaire Manufacturers

The LT600 system can be integrated into LED luminaires during product design or production, giving manufacturers a standardized Zhaga interface and multiple sensor options for different projects.

Complete Lead-Top Zhaga Solution

LT600 Receptacle

↓

Choose the sensor according to the LED driver

↓

LT6001 – 0-10V

LT6002 – DALI

↓

LED Luminaire

This modular architecture allows the same Zhaga receptacle concept to support different LED driver control technologies while maintaining a consistent interface on the luminaire.

For LED luminaire manufacturers, lighting contractors and outdoor lighting projects, Lead-Top provides the Zhaga receptacle and compatible photocell sensors as a coordinated solution.

Comparison video with other Zhaga light controls

To ensure long-term reliability, we’ve made some key improvements:

1. Enhanced Wire Stability – Dual crimping technology ensures a stronger wire connection, improving fixture stability and lifespan.
2. IP68 Waterproofing – The socket base is sealed with waterproof adhesive to prevent moisture ingress through wiring gaps, reducing the risk of short circuits or damage.
3.  Tinned Wire Ends – Facilitates easier installation and more reliable connections.
4. Sealed Unused Wire – Pre-applied heat-shrink tubing eliminates installation hassle and enhances overall waterproof performance.
5. With 304 stainless steel Internal Tooth Lock Washers – deliver outstanding anti-slip and anti-vibration capabilities, along with superior corrosion and oxidation resistance in marine environments with high salt spray and humidity.

Our sockets have helped many customers enhance product competitiveness, strengthen brand trust, and expand their market reach—for example, your local company TAKTON.
